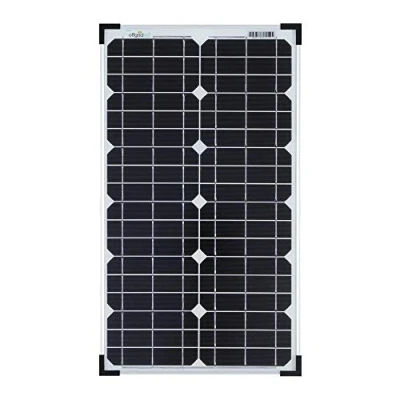

Offgridtec 30 W Solar Panel Mono 12 V Cell Photovoltaic Module 3/2001 ONWARDS 001530

High quality monocrystalline solar module --- best suited for charging 12V batteries --- Only A-grade cells are used, i.e. only cells that have performed above average in the performance tests. The most important technical data at a glance: Power(Pmax): 30W --- Voltage(Vmp): 20V --- Max. Current(Imp): 1.5A ---- Open Circuit Voltage(Voc): 24V --- Short Circuit Current(Isc): 1.62A --- Max. System Voltage: 600VDC --- Ambient Temp: -40°C to +85°C --- Dimensions (WxLxH): 560mm x 360mm x 25mm --- Weight: 2.5 KG Bypass diodes: 1 piece IOSQO50 --- Protection class junction box: IP65 --- Temperature coefficient: -0,45%/°C --- Number of cable entries: 2x PEG gland --- Cable connection terminal: screw terminal and integrated crimp connector / terminal size: M3,5 ring cable lug --- Maximum cable cross section: 6mm² Permanent monitoring of the module quality and performance data through tests under real and laboratory conditions --- every Offgridtec solar panel is subjected to a flash test before delivery --- Offgridtec GmbH customer service is permanently available for technical queries --- the module is supplied without connection cable - a suitable connection cable from the manufacturer for connection to a charge controller can be found under ASIN B0784BVPS2 The cell efficiency of the Offgridtec Mono series is 20.4% (module efficiency depending on the model >18% or >18.5% and is thus higher than most modules with similar technical specifications - this is particularly noticeable through a positive power tolerance and measurably higher yield under real conditions --- Offgridtec solar panels are equipped with bypass diodes as standard (the number of diodes varies depending on the model), which reduces the power loss in the event of shading
