OONO 30Amp 48V 2x6 Position Terminal Block Distribution Module
Prices from
COMPARE ALL WEBSHOPS
(2)
Amazon

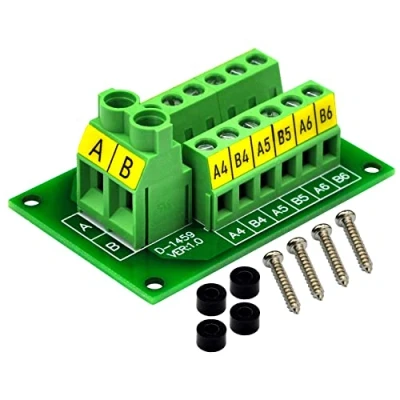

30Amp 48V 2x6 position screw terminal block distribution module. Rated current 30 Amp(total input or output), Maximum voltage 48V. A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
Read more
13.02
Featured
|
£ 13.02 |
To Shop
|
|
£ 13.02 |
To Shop
|
Description
Amazon
30Amp 48V 2x6 position screw terminal block distribution module. Rated current 30 Amp(total input or output), Maximum voltage 48V. A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
Description
(1)
30Amp 48V 2x6 position screw terminal block distribution module. Rated current 30 Amp(total input or output), Maximum voltage 48V. A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
