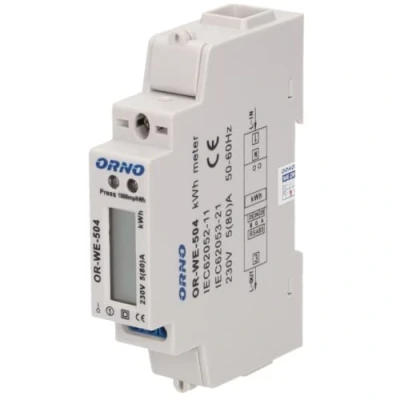

Orno Electric Meter Power Wattmeter Digital 230V 5(40) A White

Determination: the device for displaying in metric units (kWh) is used to directly measure the active power in a single phase system and record the power consumption with the possibility of remote reading of index groups register via the wired network RS-485 standard. Pulse output: a special electronics generates pulses proportionally to the consumed current under the influence of the flowing current and the applied voltage. Operating phase energy consumption is indicated by flashing LED. The number of pulses is converted into the energy consumed and their value is displayed on the LCD display (5 + 1). RS-485 connection: the port is used for remote reading of the power indicator Technical parameters: power supply: 230 V ~ 50 Hz, base current: 5 A, max. Current: 80 A, pulse rate: 1000 Imp/kWh, measuring accuracy: class 1, mounting on 35 mm support rail., Weight: 0.1763698096 pounds, Manufacturer: Orno
