Osram ECG, 74 W, Grey

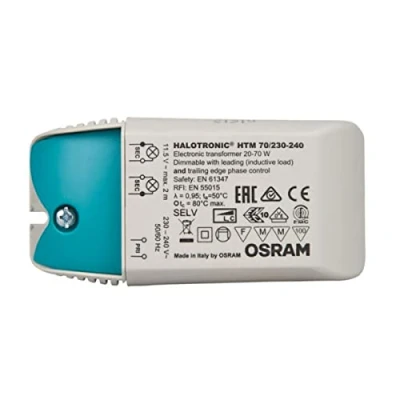

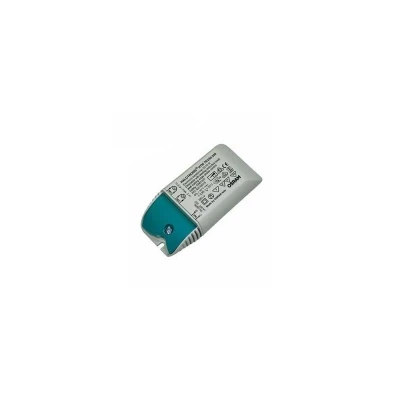

General description Osram HTM 70/230 240 is an electronic transformer designed for powering lamps with a power range of 20-70 W. It is suitable for various lighting applications, providing reliable performance and efficiency. Technical specifications Lamp power: 20-70 W Line current: 0.27 A Power factor: 0.99 Operating frequency: 52 kHz Rated output voltage: 11.2 V Rated voltage: 230-240 V AC input voltage: 207-264 V Mains frequency: 50 to 60 Hz Inrush current: 0.3 A Dimensions: Length: 108.0 mm, Width: 52.0 mm, Height: 33.0 mm

Strain relief suitable for different cable types (HTM) Suitable for space-critical installation thanks to compact functional design Extremely compact transformer for highly space-critical installation conditions (HTN) Protective operation throughout the entire partial-load range for long lamp life Product family features: Line frequency: 50…60 Hz
