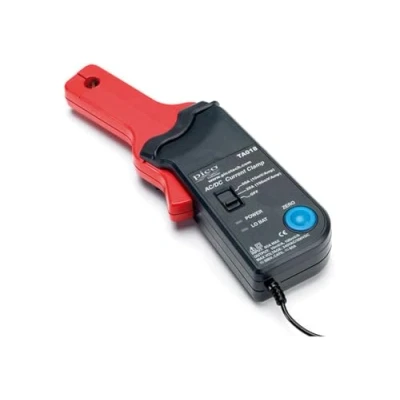

PICO TECHNOLOGY TA018 PicoScope 60 A AC/DC current clamp

The TA018 current clamp is ideal for use with PicoScope automotive oscilloscopes for measuring currents between 10 mA and 60 A This enables the PicoScope to display current waveforms for fuel injectors and fuel pumps The current clamp has two calibration settings, set by a slider switch on the handle of the probe; 1 mV/10 mA (100 mV = 1 A)— use this for testing currents up to 20 A; 1 mV/100 mA (10 mV = 1 A) — use this for testing current up to 60 A In use there is no need to break into the circuit or disturb the isolation as the opening jaws simply clamp around the current carrying conductor; No electrical contact is required These current clamps have been designed for use with PicoScope oscilloscopes and feature additional screening to reduce noise pickup TA018
