Pipe Saddle Clamp 2 1/2' x 1 1/4' With Threaded Boss Adaptor

ManoMano

General description The 2 1/2" x 1 1/4" BSP Pipe Saddle Clamp is designed for making simple connections to the side of a supply tube. The saddle wraps around the pipe and is tightened using the supplied bolts. A hole is drilled into the side of the pipe through the threaded outlet, allowing for easy expansion of existing systems to attach additional piping. This saddle clamp features a female threaded side outlet for straightforward installation and can also be utilized to divert leaking water away from the pipe. Technical specifications Thread size: 2 1/2" BSP Additional female thread joint size: 1 1/4" BSP Maximum operating pressure: 16 bar Maximum operating temperature: 90°C Material of clamp body: black malleable cast iron Sealing sleeve material: EPDM rubber Connecting screws material: carbon steel Compatibility and accessories Compatible with steel, PE, and other pipes Allows connection of any piping extension to existing systems

Amazon

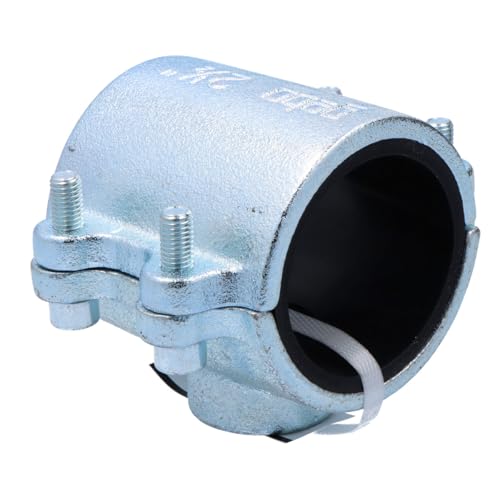

Flange compression, cuff with right-2 1/2 inches, Manufacturer: Gebo
