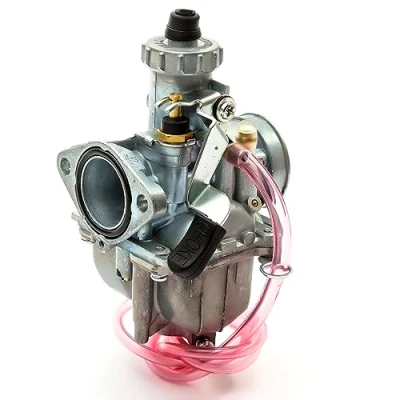

Pitbike Dirtbike 26mm Compatible Mikuni VM22 Carburettor Carb 110cc 125cc 140cc

SPECIFICATIONS: Choke Mechanism: Manual - Hand Operated/ Outer Diameter of @@@zjrhRJPckM9SEX0y6TilDNx1oJM9zlC6@@@ Filter Connection Point (excluding lip): 38 mm / 1.5 inches/ Internal Dimensions / Diameter of Fuel Chamber: 22 mm / 0.87 inches/ Which Air Filter Size Does This Carb Take?: 38mm/ Distance Between Fixing Holes (inlet side, centre of eye to centre of eye): 48 mm / 1.89 inches/ Distance Between Fixing Holes (outlet side, centre of eye to centre of eye): 48 mm / 1.89 inches Inner Diameter of Outlet (greatest): 26 mm / 1.02 inches/ Width (from inlet side to outlet side): 79 mm / 3.11 inches/ Includes Throttle Cable?: No/ Includes Inlet Manifold?: No/ Includes Fuel Tap?: No/ Overall Width: 85.25 mm / 3.36 inches/ Overall Height: 145 mm / 5.71 inches/ Diameter of Fixing Hole(s): 5 mm / 0.2 inches/ Inner Diameter of Air Intake: 26 mm / 1.02 inches/ Colour: Silver/ Diameter of Straight Section Needle: 2.5 mm / 0.1 inches The carburettor comes set up and fitted with a 95 main jet and 15 pilot jet, ideal for 110cc - 125cc and some 140cc Fits all the big Chinese pit bike import brands including Stomp, Demon X, WPB, Orion, M2R, Lucky MX, Thumpstar, Explorer, Braaap, Atomic, Pitpro, Pitster Pro, DHZ, SSR, Piranha and many more This is approved for use in place of a genuine 26mm Mikuni Pitbike Carburettor with over 2000 sold!
