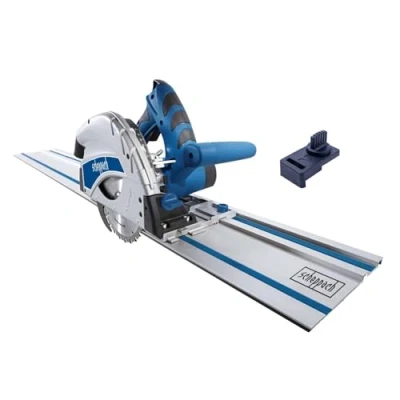

Plunge saw PL75 scheppach special edition

General description The Scheppach PL75 230V Circular Plunge Saw is a versatile tool designed for precision cutting. With the optional 1400 mm guide rail, it transforms into a 3-in-1 plunge saw system, enabling a variety of cuts that traditional hand saws cannot achieve. This saw is perfect for both workshop and on-site use, allowing users to realize their potential in DIY and home improvement projects. Technical specifications Powerful 1600 Watt motor Dimensions: LxWxH 420 x 300 x 235 mm Blade diameter: Ø 210 mm Arbor diameter: Ø 30 mm Blade speed: 4500 rpm Maximum cut at 90°: 75 mm Maximum cut at 45°: 55 mm Bevel capacity: 0 – 45° Distance-to-wall cut: 16 mm Dust collection diameter: inner/outer 35/38 mm Motor voltage: 230 – 240 V~ Input power: 1600 W Weight: net 6.9 kg / gross 7.6 kg Packaging dimensions: 430 x 240 x 315 mm Compatibility and accessories Includes 1400 mm guide rail Clamps and rail connector Anti-tip device Standard attachable splinter guards for splinter-free cuts

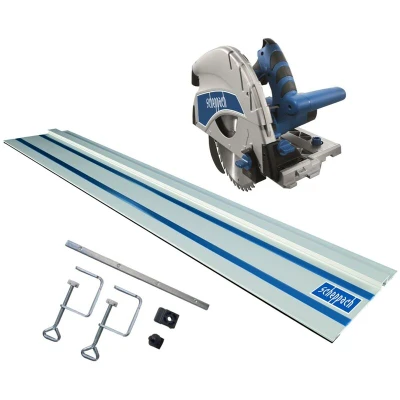

1600W MOTOR & 75MM CUT DEPTH: With 4500rpm and a 210mm 36-tooth blade, the PL75 brings deeper cutting capacity to demanding jobs tackled with electric saws to cut wood. 0-45° BEVEL ADJUSTMENT: The electric saw cuts up to 75mm at 90° and 55mm at 45°, with stepless depth control for straight, angled and plunge cuts. GUIDED CUTTING CONTROL: The circular saw guide setup uses adjustable rail clearance to reduce side play, while the splinter guard supports a cleaner upper edge on 0° cuts. 5X 500MM RAIL SECTIONS: The plunge saw with guide rail includes four joining bars, allowing the supplied track sections to be connected for longer guided cutting runs. ANTI-TIP & EXTRACTION: The supplied anti-tip device helps stabilise the saw during inclined rail work, while the guide rail can be clamped securely and 38mm dust extraction attached.
