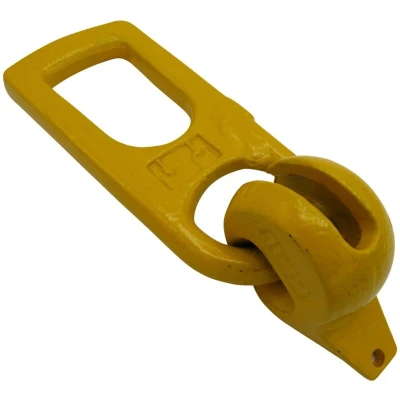

Pre Cast Concrete Lifting Clutch 1T 1.3T (Grade 80 Steel Quick Lift Ring)

ManoMano

General description This Precast Concrete Lifting Clutch is essential for safely lifting prefabricated concrete products such as columns and staircases. It is designed to ensure efficient lifting while minimizing the risk of damage to the product and surrounding area, as well as ensuring the safety of personnel involved in the lifting process. Technical specifications Length of Lifting Attachment Plate: 160 mm Width: 73 mm Thickness of Lifting Attachment Plate: 13 mm Overall Length: 200 mm Suits Anchor Pin Shaft Diameter: Up to 11 mm Suits Anchor Pin Head: Over 23 mm Safe Working Load: 1 - 1.3 T Weight: 0.95 kg Manufactured from Grade 80 steel and powder coated yellow Manufactured in accordance with BS-EN818-2 Installation The lifting clutch is designed to be used with a lifting pin anchor that is set and recessed into the cast concrete block. The clutch hooks onto the head of the anchor, and during the lifting process, it rotates until it locks into position.

Amazon

Designed for lifting Prefabricated Concrete Blocks safely and efficiently Made from extremely strong and durable Grade 80 Steel Powder Coated for rust and corrosion protection 1 Ton - 1.3 Ton Safe Working Load Manufactured in accordance with BS-EN818-2 for your peace of mind
