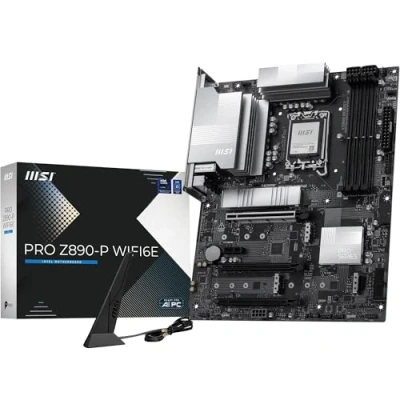

PRO Z890-P WIFI6E

Msi Pro Z890-p Wifi6e Motherboard. Brand: MSI.Model: 911-7E34-019.Platform: Intel LGA1851.Chipset: Intel Z890.Supported CPUs: Intel Core Ultra Processors (Series 2).Memory: 4 x DDR5 UDIMM.Dual Channel Architecture.Maximum Capacity: 256 GB.XMP 3.0 Compatibility.Non-ECC Un-buffered Memory.Expansion Slots: 1 x PCI Express x16 Gen 5.0.2 x PCI Express x16 Gen 4.0.1 x PCI Express x1 Gen 4.0.Graphics: 1 x HDMI 2.1 (4K 60 Hz).1 x DisplayPort 1.4.1 x Thunderbolt 4 Type-C (40Gbps, supports video output).I/O Ports, Connectors: USB Connectivity.1 x USB 20Gbps (Type-C).2 x USB 10Gbps (1 Type-A + 1 Type-C).6 x USB 5Gbps (Type-A).8 x Rear USB 2.0 .1 x Thunderbolt 4 Type-C.1 x HDMI / 1 x DisplayPort.1 x RJ-45 5G LAN.Wi-Fi / Bluetooth Connectors.HD Audio Connectors.Other Features:Storage.1 x M.2 PCIe 5.0 x4 (128Gbps).3 x M.2 PCIe 4.0 x4 (64Gbps).4 x SATA 6 Gb/s.RAID 0 / 1 / 5 / 10 Network.Realtek 8126 5G LAN.Intel Wi-Fi 7.Bluetooth 5.4 Audio.7.1 Channel HD Audio.Audio Boost Operating System.Windows 11 64-bit.Revision Date: 05-06-2026 by AP. tradeinn Techinn

ULTRA POWER - SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS (Series 2) IN HIGH PERFORMANCE - The PRO Z890-P WIFI6E employs a 14 Duet Rail Power System (55A, DrMOS) VRM for the Intel Z890 chipset with Core Boost architecture FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A) DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 9200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards QUADRUPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling and 3 x M.2 Gen4 x4 64Gbps slots ULTRA CONNECT - Network hardware includes a Wi-Fi 6E module with Bluetooth 5.3 & 5Gbps LAN; Rear ports include USB 20Gbps Type-C and 7.1 HD Audio with Audio Boost
