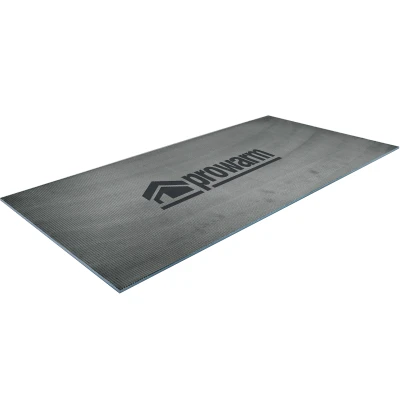

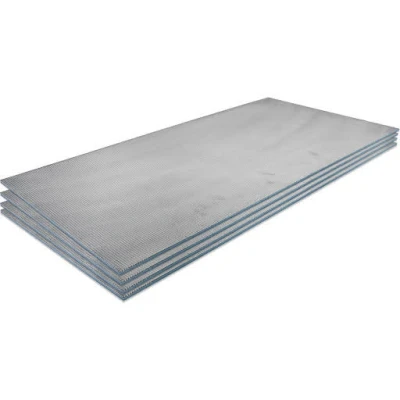

Prowarm Tile Backer Board Insulation 6mm (1200x600mm)

ProWarm BACKER-PRO insulation boards are the ultimate solution for superior waterproofing and heat insulation in underfloor heating and tiling applications. Crafted from high-quality extruded polystyrene, these panels are reinforced with fiberglass mesh on both sides, making them exceptionally durable and reliable. Designed specifically to complement underfloor heating cables and mats, these boards are not suitable for foil heating systems.

Key Features

- Superior Waterproof Surface: BACKER-PRO boards provide a robust and waterproof foundation for securely fixing wall or floor tiles. This ensures long-lasting performance and protection against moisture, making them ideal for wet environments such as bathrooms.

- Outstanding Heat Insulation: With a thermal conductivity value of 0.033 W/mK, these insulation boards enhance the efficiency of underfloor heating systems. They significantly reduce heat-up time, minimize running costs, and contribute to optimal comfort and energy savings.

- Versatile Thickness Options: Available in a range of thicknesses including 6mm, 10mm, 12.5mm, 20mm, 30mm, and 50mm, the BACKER-PRO boards offer flexibility to meet various installation needs and insulation requirements.

- Approved by Tile Adhesive Manufacturer Instarmac - Ultra: Rigorously tested and approved by Instarmac - Ultra, these boards guarantee compatibility and reliability with professional-grade adhesives.

- Excellent Sound Insulation: The boards effectively reduce impact sound, creating a quieter and more comfortable environment in any space.

- Easy Installation: The insulation boards are easy to cut with just a knife, eliminating the need for complex tools such as a jigsaw. They can be installed on both floors and walls with ease.

- Dimensional Stability: Waterproof and exhibiting excellent dimensional stability, BACKER-PRO boards maintain their integrity and performance even in wet room environments.

Installation Recommendations

For installation, it is recommended to use a flexible tile adhesive when working with concrete or screed subfloors. For wooden subfloors, a combination of flexible tile adhesive along with screws and washers (approximately 15 fixings per board, spaced at 300mm centers) is advised. These boards have been tested with Instarmac Ultra Tile adhesives and levelling compounds, ensuring reliable performance.

Additional Information

ProWarm BACKER-PRO insulation boards are not only designed for underfloor heating applications but also serve as excellent thermal barriers beneath tiled floor finishes. Their unique properties enhance the overall performance of heating systems while providing sound insulation and moisture protection. With a 30 t/m² compression strength and less than 0.1% water absorption, these boards are built to last. Please note that the color of the polystyrene may vary depending on the production batch.

Backed by a guarantee of 50 years, the ProWarm BACKER-PRO tile backer insulation boards stand out as a practical choice for anyone looking to enhance their underfloor heating and tiling projects.
