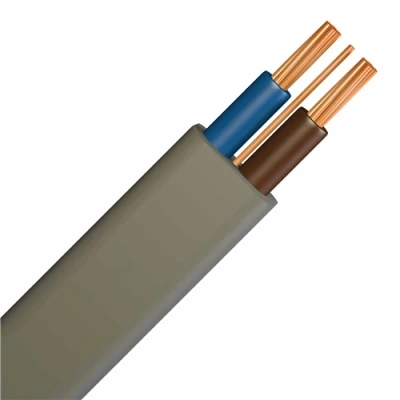

PX 1.5mm 6242Y Grey Twin & Earth Cable 100m

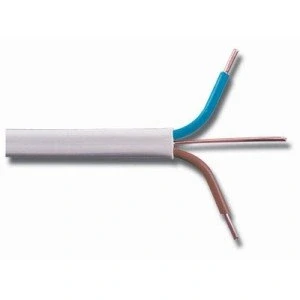

The BASEC-approved Twin & Earth cable (also known as T&E) is a flexible flat sheathed mains electricity wiring cable used in a wide range of domestic electrical applications with a voltage rating of 300/500V. It can be installed in fixed wiring installations in dry or damp premises clipped to surface, on trays or in free air where there is no risk of mechanical damage. It is suitable for laying in conduit or trunking where mechanical protection is required.Twin and Earth cable is a general fixed wiring and lighting cable, containing three conductors. As the name suggests, there is a pair or Twin current carrying conductors, both individually insulated, and one bare conductor which is the central protective circuit (CPC) or Earth.Due to the non-UV resistant nature of its outersheath, Twin & Earth cable is not suitable for outdoor use.Technical Specification:Voltage: 300/500VConductor: Class 5 Flexible Stranded CopperInsultation: PVC (Polyvinyl Chloride)Outer Sheath: PVC (Polyvinyl Chloride)Cores: 3Cross-Sectional Area (m²): 0.75Thickness Of Insulation (mm): 0.6Overall Diameter (mm): 6.7Weight (kg): 3.4Sheath Colour: WhiteLength: 50mWeight: 8.7Kg
