QWORK® 45A Battery Terminal Connector, Quick Connect Disconnect Modular Power Connector 10 Pairs

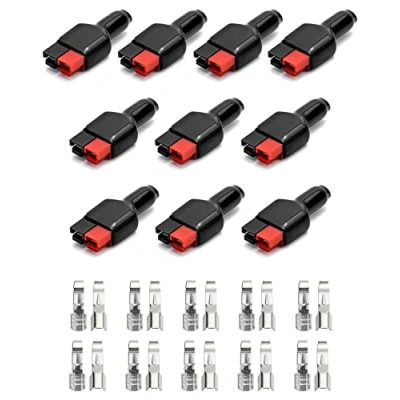

Specifications: Rated volt: 600 V. Rated current: 45A. Maximum diameter of thread insulation: 0.175inches (4.45 mm). Working temperature: -20 °C to 105 °C. Flammability class of housing Material: UL 94-V0. Material: The contacts is made of silver-plated metal, which resistance is lower than copper and gold. They provide the lowest resistance and provide more power, less heat, and higher performance. Modular: Molded dovetail ends, secures individual connectors in "keyed" assemblies that prevent connection errors with similar configurations. Design without sex, makes assembly quick and easy, and reduces the number of parts stored. Housing: The plugs feature color coded plastic housings which will mate together, up side down to each other, enabling the alignment of positive and negative cables. Application: Quick disconnect power connectors for automotive, two-way radios, sound equipment and other electronic equipment. This set include 10 x black housings, 10 x red housings, 10 x sleeve covers, 20 pcs silver plated contacts, total 50pcs are well packed., Manufacturer: QWORK
