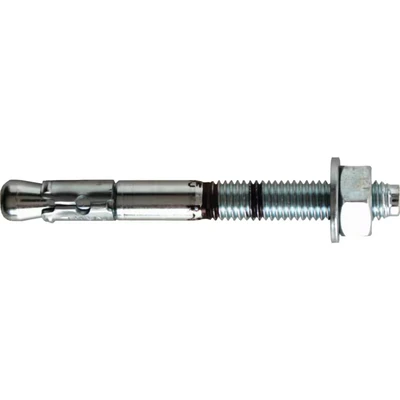

Rawlplug R XPT 20300 20 x 300 mm M20 Zinc Plated Through Bolt (10 pieces)

This versatile range of through fixing bolts is expertly designed for applications in various concrete types, including C20/25 to C50/60, as well as reinforced and unreinforced concrete and natural stone. The bolts feature embedded depth markings to help achieve precise installation, while an optimized expander designed with six grip features enhances the product’s load-bearing capacity. They meet all relevant industry standards, ensuring reliability and performance.

Features and Benefits

- Each anchor comes equipped with embedment depth markers that facilitate the correct installation depth, ensuring secure anchoring.

- Constructed from cold-formed materials, the body of the bolt maintains high dimensional accuracy, contributing to overall performance.

- The unique design allows for seamless drilling and installation directly through the fixture, simplifying the process for users.

- Available in a variety of thread sizes and lengths, this product range ensures that there is an option to meet your specific requirements.

- The deep markings on the bolt head serve as a visual aid for determining the anchor length and the desired setting depth after installation.

Typical Applications

These through fixing bolts are particularly effective for:

- Cladding restraint

- Curtain walls

- Balustrading

- Barriers and handrails

- Racking systems

- Structural steel frameworks

- Bollards

Installation Advantages

The embedment depth markings not only promote precise installation but also significantly reduce effort during the installation process. The reduced anchorage depth minimizes contact with any existing reinforcement, allowing for a smoother and quicker installation timeline.

Technical Standards

The bolts comply with stringent technical standards, including:

- ETA 17/0183

- EAD 330232-00-0601

Specifications

The product model R-XPT-20300/160 boasts a zinc-plated finish, ensuring corrosion resistance and durability. With a metric specification of M20 x 300mm, each bolt is designed to cater to heavy-duty applications and maintain structural integrity under load.

With a weight of approximately 0.441 pounds, the design ensures that each bolt is manageable while still retaining strength. This makes them suitable for various construction and installation projects, ensuring that each application benefits from the reliability and structural support that these through fixing bolts provide.

In summary, these through fixing bolts are an exceptional choice for professionals seeking reliable, high-performance anchoring solutions, adaptable to a multitude of construction scenarios.
