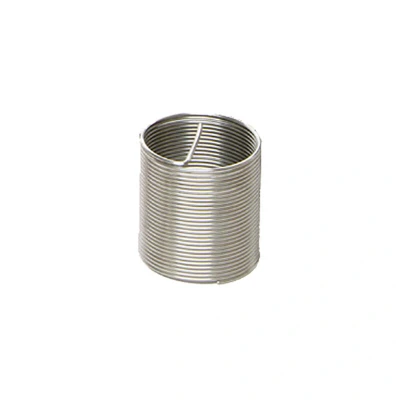

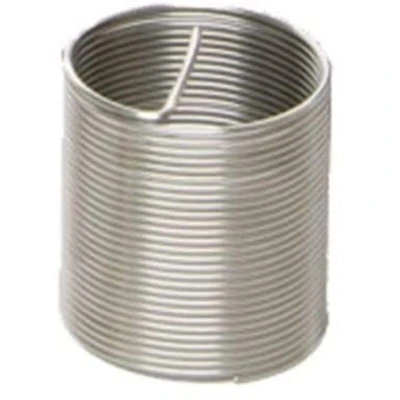

Recoil Inserts Free Run Metric M6.0 1.00 Pitch x 2.5D

General description Recoil Inserts are designed to provide a strong and durable thread repair solution. Made from high-quality stainless steel wire, these inserts feature a diamond-shaped cross-section wound into a spring thread shape. They are specifically engineered to enhance the strength of the original thread, making them ideal for various applications. Technical specifications Size: M6.0 x 1.00 Pitch Length: 2.5D (2 1/2 times the diameter) Installation The insert is larger in diameter than the tapped hole. During installation, the insert is compressed and then allowed to spring back, permanently anchoring it in the tapped hole. Usage Recoil Inserts are used to repair stripped threads and provide a stronger, more reliable fastening solution.

Recoil Inserts are made from high quality stainless steel wire with a diamond shaped cross section wound to the shape of a spring thread. The insert which is larger in diameter than the tapped hole is compressed during installation then allowed to spring back permanently anchoring the insert in the tapped hole. Because of its larger diameter the recoil insert has a greater contact area and is normally stronger than the original thread.Size. M6.0 x 1.00 Pitch.Length. 2 1/2 X Diameter.PTDRCL05065
