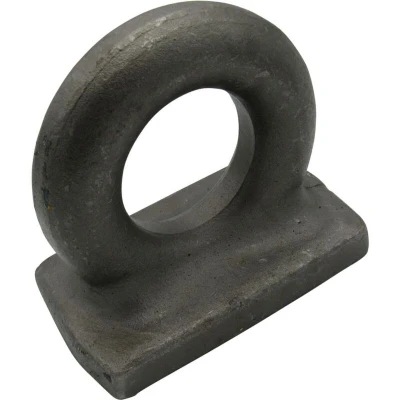

Rectangular Base Deckplate 7/8'' 9.6T Proof Load 22MM Eye Plate Lashing Weld On Deck Self Colour

ManoMano

7/8'' Rectangular Base Deckplate Safe Working Load - 9.6 Ton (Subject To Correct Welding Procedure) Finish - Self Colour Product Code SWL (Tonne) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) SFRBD10 2 45 25 40 10 19 9 SFRBD12 3.5 63 36 53 12.5 26.5 13 SFRBD16 5.5 69 46 65 16 30 10 SFRBD20 7.5 84 51 75 18.5 34 12 SFRBD22 9.6 102 60 91 23 40 14 SFRBD25 13 114 71 100 25.5 47.5 17 SFRBD28 15.75 130 76 112 28 56 18 SFRBD32 20 145 85 130 33 60 19 SFRBD35 23.63 157 95 139 35.5 69 20 SFRBD38 29 168 101 151 40.5 72.5 23 SFRBD44 39 197 119 178 44 84.5 26 SFRBD52 50 230 141 200 51 99 27 These Rectangular Base Deckplates Are Commonly Used As An Attachment Point And Can Also Be Used For Securing Mounting Blocks And Staysails. These Deckplates Have A Flat Rectangular Base Which Can Be Easily Welded Onto Surfaces Such As The Deck Of A Boat. Always Ensure Welding Is Carried Out By A Qualified Person. As General Rules; Always Preheat, No Tack Welding Or Short Thin Runs. *Test Certificate Will Be Supplied

Amazon

Safe Working Load - 9.6 Ton (Subject To Correct Welding Procedure) Finish - Self Colour This Is Used As An Attachment Point Ensure Welding Is Carried Out By A Qualified Person A = 102MM, B = 60MM, C = 91MM, D = 23MM, E = 40MM, F = 14MM, Manufacturer: SecureFix Direct
