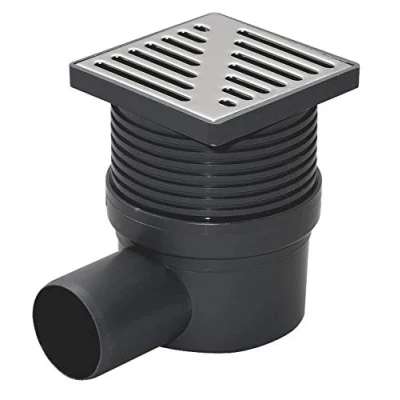

Regulated Height Side Outlet 100x100mm Floor Ground Waste Drain Gully Trap

ManoMano

General description Garage floor drains are designed to effectively drain household, garage, and industrial sewage, as well as rainwater. Also known as gully traps, these floor waste drains feature a top part dimension of 100x100mm and a 50mm pipe outlet. Their construction allows for assembly at ground level, floor, and roof levels, serving as the final point in gravitational sewage systems. The casing should be embedded in concrete to enhance durability and ensure reliable long-term operation. The specially designed rim facilitates easy and precise enclosure of the floor drain grate with tiles. Technical specifications Grid dimensions: 100x100mm Regulated height: 140-180mm Side outlet pipe diameter: 50mm Body material: PVC Grid material: stainless steel Water flow: >0.8 l/s

Amazon

Grid dimensions: 100x100mm Side outlet pipe diameter: 50mm Body material: PVC Grid material: stainless steel Water flow: >0,8 l/s, Weight: 0.771617917 Pounds, Manufacturer: Tycner
