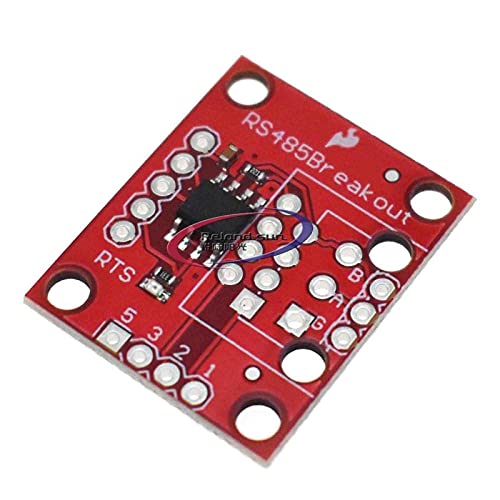

Reland Sun 3.3V UART Serial to RS485 SP3485 Transceiver Converter Communication Module
|
£ 1.50 | To Shop |
Description
Amazon
Specification: This is a breakout board for the SP3485 RS-485 transceiver IC, which will convert a UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. This board requires a very low amount of power and can operate from a single +3.3VDC supply. , Fully equipped with SP3485 RS-485 transceiver and supporting components. Operates from a single +3.3V supply , Interoperable with +5.0V logic , RS-485 input/output broken out to RJ-45 connector, 3.5mm screw terminal, and 0.1" pitch header Driver/Receiver Enable connected to RTS line , -7V to +12V Common-Mode Input Voltage Range , Allows up to 32 transceivers on the serial bus , Driver Output Short-Circuit Protection
Compare webshops (1)
Description
(1)
Specification: This is a breakout board for the SP3485 RS-485 transceiver IC, which will convert a UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. This board requires a very low amount of power and can operate from a single +3.3VDC supply. , Fully equipped with SP3485 RS-485 transceiver and supporting components. Operates from a single +3.3V supply , Interoperable with +5.0V logic , RS-485 input/output broken out to RJ-45 connector, 3.5mm screw terminal, and 0.1" pitch header Driver/Receiver Enable connected to RTS line , -7V to +12V Common-Mode Input Voltage Range , Allows up to 32 transceivers on the serial bus , Driver Output Short-Circuit Protection
