Reliance Valves Dry Trap Tundish 15mm x 22mm TUND600005

Amazon

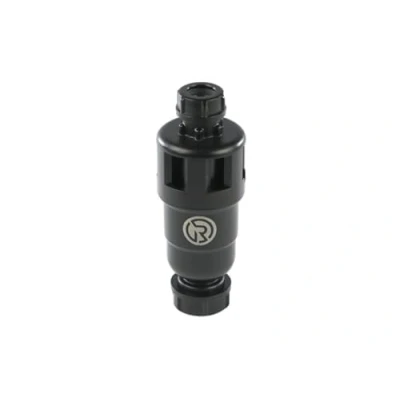

Reliance Valves Dry Trap Tundish, Backflow prevention device for Fluid Category 5 contamination risk with AA type air gap and spring loaded mechanism. Reliance Valves Dry Trap Tundish is a type AA backflow prevention device, meaning it is an unrestricted air gap. It is designed to take any discharge that may occur from either a Pressure Relief Valve or a Pressure & Temperature Relief Valve fitted to an unvented hot water cylinder. Water flowing through a tundish is an indication of a fault with the system and alerts the occupants of the issue. It is typical practice to fit both a trap, to prevent odours coming up through the drainage system, and a tundish to prevent backflow into the potable water system. The Reliance Valves Dry Trap Tundish type incorporates a waste trap, saving time and cost when installing a discharge pipe into a soil or waste pipe. Type AA backflow prevention for robust protection from potable water contamination Ideal for use with an unvented water heater or boiler relief valve discharge Spring-loaded seat to prevent smells and gasses from travelling backwards Can be connected directly to a soil point or external termination point Operates under full bore discharge and minimal discharge WRAS approved product., Weight: 0.2645547144 Pounds, Manufacturer: John Guest

ManoMano

Reliance Valves Dry Trap Tundish, Backflow prevention device for Fluid Category 5 contamination risk with AA type air gap and spring loaded mechanism, Reliance Valves Dry Trap Tundish is a type AA backflow prevention device, meaning it is an unrestricted air gap. It is designed to take any discharge that may occur from either a Pressure Relief Valve or a Pressure & Temperature Relief Valve fitted to an unvented hot water cylinder. Water flowing through a tundish is an indication of a fault with the system and alerts the occupants of the issue. It is typical practice to fit both a trap, to prevent odours coming up through the drainage system, and a tundish to prevent backflow into the potable water system. The Reliance Valves Dry Trap Tundish type incorporates a waste trap, saving time and cost when installing a discharge pipe into a soil or waste pipe. The specially designed seal prevents odours or gases from entering the building, while still allowing discharged water to be conveyed
