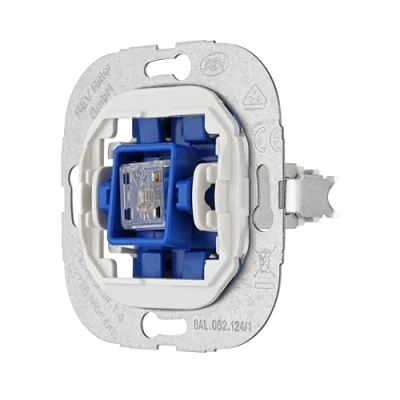

REV 0299380006 Technik Modul Taster beleuchtet Flush Mounted Cables

Push button switches or short buttons, are switches that open or close a circuit at the touch of a button (rocker switch). The rocker switch is repeatedly pushed back to its original position Can be combined with REV Ritter switch range covers: Futura, Matrix, Optima, Quadro, Radius, Studio and Vario Flush-mounted button for use in dry indoor areas (IP20) with 2 switching options: 1) button with glow lamp and neutral conductor (3-wire design). and 2) buttons with glow lamp (2-wire design. ). Mainly used in hallways and stairwells. Please pay attention to the maximum rated current consumption of the glow lamp of 0.45 mA when using the number of buttons used Button dimensions (L x W x H): 72x72x40 mm, weight: 59g, 250V~, 50Hz, 10A, SBL=100W, Manufacturer: REV Ritter GmbH
