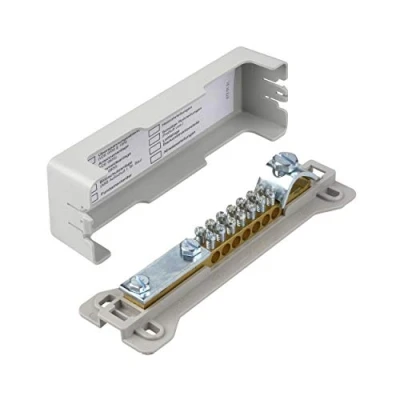

REV Grounding Bar, Potential Compensation Rail, Sealable, 9 Connections, Grey

Lightning protection is an essential factor in protecting a building and its electrical installation. The potential equalization rail ensures a common ground potential The cap of the potential compensation rail is made of impact-resistant plastic and is sealable. The contact strip with its 9 connections made of brass is nickel-plated A connection of the grounding rail is intended for the foundation terminal (flat band or round conductor) and takes either a flat band with max. 30 x 4 mm or a round conductor with max. Diameter: 8-10 mm The 7 single screw connections of the compensation rail can hold one or more conductors up to max. 25 mm² A round conductor with max. 50 mm². Dimensions (L x W x H): 177 x 53 x 40 mm, weight: 202 g, Weight: 0.44533376924 pounds, Manufacturer: REV Ritter GmbH
