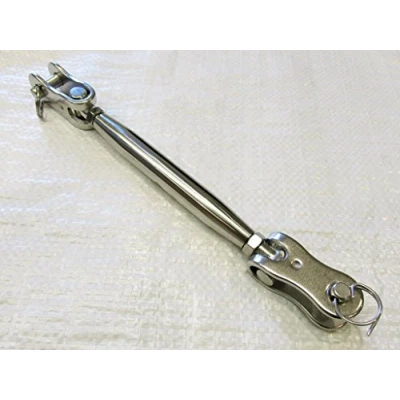

Rigging Screw Turnbuckle Toggle/Toggle 10MM Stainless Steel

ManoMano

General description Stainless Steel Turnbuckle Toggle/Toggle 10MM is a robust rigging screw designed with a toggle on each end, making it ideal for various applications, including handrail wires and rigging on boats of different sizes. Manufactured from 316 grade stainless steel, these turnbuckles offer excellent rust protection, making them particularly popular in the marine industry. Technical specifications Size: 10MM Metal: 316 Grade Stainless Steel Breaking Load Options: SFSSRTT05: 570 KG, A: 216 MM, B: 7 MM, C: 6 MM, D: 5 MM, E: 88 MM, F: 145 MM SFSSRTT06: 785 KG, A: 225 MM, B: 7.5 MM, C: 6 MM, D: 6 MM, E: 100 MM, F: 147 MM SFSSRTT08: 1417 KG, A: 281 MM, B: 11 MM, C: 8 MM, D: 8 MM, E: 105 MM, F: 194 MM SFSSRTT10: 2223 KG, A: 330 MM, B: 15 MM, C: 10 MM, D: 10 MM, E: 121 MM, F: 230 MM SFSSRTT12: 3264 KG, A: 405 MM, B: 15 MM, C: 12 MM, D: 11.5 MM, E: 151 MM, F: 288 MM

Amazon

Size - M10 Material - 316 Grade Stainless Steel A - 330MM, B - 15MM, C - 10MM D - 10MM, E - 121MM, F - 230MM, Manufacturer: SecureFix Direct
