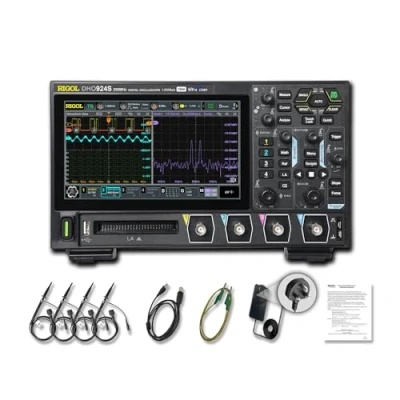

RIGOL DHO924S Portable Digital Oscilloscope, 250MHz Bandwidth, 4 Analog Channels, 16 12 bit Vertical Resolution, supports Bode Plot Analysis, integrated 25MHz Signal Generator.

【Specifications】The DHO924S digital oscilloscope has a bandwidth of 250 MHz, a sampling rate of 1.25 GSa/s, and a memory depth of 50 Mpts. It is a four-channel oscilloscope with a time base range from 2 ns/div to 500 s/div and a vertical scale from 200 μV/div to 10 V/div. The waveform capture rate is 1,000,000 wfms/s. It features 16 digital channels and a 7-inch color touchscreen. The dimensions are 265.35 mm (length) × 161.75 mm (height) × 77.38 mm (width), and it weighs 1.78 kg. It is a portable digital oscilloscope 【12-Bit High Resolution】This oscilloscope features 12-bit high resolution and a low-noise design, enabling even the smallest signals to be captured accurately in demanding measurement environments. Ideal for high-quality electronics development and laboratory oscilloscope applications 【Multifunctional Measurement Instrument】This instrument includes a 25 MHz single-channel signal generator, 16 digital channels, a 3-digit digital multimeter, a frequency counter, and supports protocol decoding for RS232/UART, I2C, SPI, CAN and LIN. It also provides FFT analysis and automatic measurements, significantly improving test efficiency 【Ultra-clear Touchscreen & Compact Design】Equipped with a 7-inch HD touchscreen, Type-C power input and the ability to run from a power bank, this laboratory oscilloscope is ideal for fast and flexible field measurements 【Remote Control & Development Support】With USB, LAN and HDMI interfaces, plus an Android operating system, the oscilloscope enables PC remote control, supports secondary development, is SCPI-compatible, and integrates easily with LabVIEW, Visual Basic and Visual C++ 【Versatile Applications & Service Guarantee】The RIGOL DHO900 series portable oscilloscopes come with a 3-year warranty. They are perfect for field testing, troubleshooting, circuit development, embedded system design and laboratory applications, delivering high-precision, mobile measurement solutions
