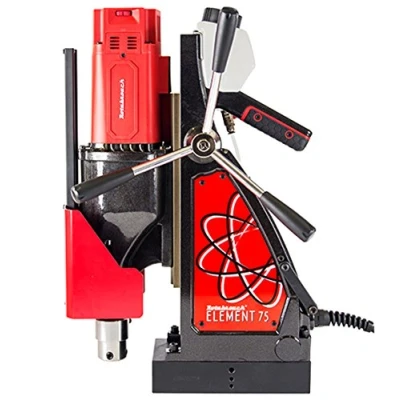

Rotabroach Element 75/1 Model Magnetic Drill, 110V, 1800W, 528mm Heightt, 214mm Width, 375mm Length

Amazon

ALL-ROUND PERFORMANCE : Boasting a more powerful 1800W motor featuring a two-speed mechanical gearbox giving you 12 forward and reverse speed settings, a drill diameter of up to 75mm, a max depth cut of 75mm and twist drill capacity with 13mm chuck supplied. Magnetic size - 220mm x 114mm with Magnetic Adhesion of 18,500N, Dimensions - 230 × 230 × 545 mm and weighing only 23.5 kg. POWER, CONTROL & SPEED : Powerful 1800w Magnetic bench drill, with a two-speed mechanical gearbox capable of drilling up to 75 mm in diameter and 75 mm in depth. Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility. MULTI PURPOSE : Rotabroach's Element 75/1 (110v) 1800W (12+/- Speeds) Magnetic bench drill is Ideal for Countersinking, using twist drills and with Reversible features to allow Tapping and Threading in the steel industry, shipbuilding, manufacturing equipment, installation, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing, DIY and other fields. These cutters are suitable for pipework, sheet metal and and plastics, with a maximum tensile strength of 900N/mm². ENHANCED SAFETY : The Element 75/1 mag drill press incorporate a dual motor protection system (prolonging the machine’s life and preventing unwanted wear) alongside an Internal Cooling and Wiring System and Mounted Coolant System. The drill stand features Electronic Overload Protection, a Mechanical Clutch, Magnetic Detection and a fixed guard. The drill stand magnetic hole driller also utilises Rotabroach’s innovative CutSmart technology to minimalise wear on both the motor and cutter, prolonging overall tool life. INDUSTRY LEADING BRAND : For over 40 years, Rotabroach has provided the highest standards of magnetic drills, driving industry change and bringing incomparable levels of efficiency and effectiveness to their clients. From the Commando 35 to the Element 100, there is a Rotabroach power tool that can change your business. With a pillar drill capable of countersinking, core drilling, twist drilling, tapping and a number of other functions, there’s a machine that can handle any challenge you give it.

ManoMano

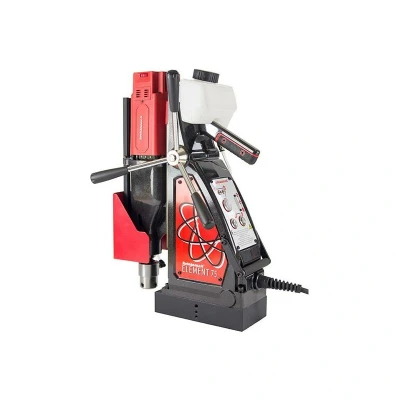

General description The Rotabroach Element 75 110V Magnetic Drilling Machine is designed for heavy-duty operations, making it essential for drilling larger holes. It is compact, durable, and more portable than other larger machines, suitable for drilling up to 75mm in diameter and 75mm in depth. The machine features both forward and reverse functionality and can be supplied with either a swivel base or a non-swivel option. Additionally, it incorporates a unique dual motor protection system that prolongs the machine's life and prevents unwanted wear. Technical specifications Model Number: Element 75/1 Motor Specification: 110V 1800W No Load RPM: Low Gear: 70 - 180 RPM / High Gear: 200 - 500 RPM Max Hole Cutting Capacity: ø75 x 75mm Deep – 26mm with MT Drill Overall Dimensions: Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard Machine Weight: 23.5kg Magnetic Adhesion: 18,500N Magnet Size: 220mm x 114mm Safety Features: Cutsmart™ Technology, Fixed Guard, Magnetic
