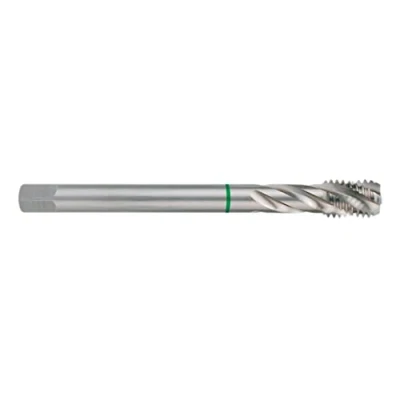

Ruko M Din 376 Hss-co 5 Ground Type C M6 Threading Tap Silver . Machine tap made of high-speed steel alloyed with cobalt (HSSE-Co5), with an oversized shank according to DIN 376, designed for larger threads.The cobalt content provides greater resistance to the heat generated during threading, resulting in a longer lifespan than standard HSS.The Type C chamfer, with 2-3 threads and a 35° right-hand helical flute, evacuates chips upwards, making it suitable for threading blind holes.It is suitable for threading unalloyed and alloyed steel up to 1000 N/mm² in strength, and non-ferrous metals.Technical characteristics:Oversized shank according to DIN 376.Type C chamfer, with a 35° right-hand helical flute, for blind threads.Greater heat resistance and longer lifespan than standard HSS.Recommended applications or uses:Threading of unalloyed and alloyed steel up to 1000 N/mm², and non-ferrous metals.Oversized shank according to DIN 376.Type C chamfer, with a 35° right-hand helical flute, for blind threads.Greater heat resistance and longer lifespan than standard HSS.Suitable for unalloyed and alloyed steel up to 1000 N/mm² and non-ferrous metals.Color: 0.Net weight (in Kg): 0.0150.Item length (in cm): 12.Item width (in cm): 3.Item height (in cm): 1.Dimensions: M 6x1.Thread type: DIN ISO 13 (metric).Thread Ø (mm): 6.Pitch (mm): 1.Pilot drill Ø (mm): 5.Total length (mm): 80.Thread length (mm): 13.Shank Ø (mm): 4.5. tradeinn Bricoinn
AmazonShank diameter : 4.5 mm Type: Type C / 35 degree right-hand spiral flutes, 2-3 threads Shank: Square as per DIN 10 Cutting direction: Right hand cut Tolerance: DIN ISO 2
