Safety Pin Bow Shackles X2 1 Ton

ManoMano

Specifications: ProDuct Code: SFUSSAB1 Product Weight: 0.34kg 1T Bow Shackles with Safety Screw Pin US Federal Specification RR-C-27IDIV Body Finish: Hot Dipped Galvanised Conforms To: BS EN 13889: 2003 + A1: 2008 Product Code SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) SFUSSAB0.5 0.5 6.5 8.2 13 17.7 28.7 18.5 9.25 SFUSSAB0.75 0.75 8.2 9.6 15 21 30.5 21 10.5 SFUSSAB1 1 9.9 11 17 25.5 35 25.5 12.75 SFUSSAB1.5 1.5 11 13 20 26.5 41.5 29 14.5 SFUSSAB2 2 1 15.5 21 30.5 47 33 16.5 SFUSSAB3.25 3.25 16 18.5 30 39.5 60.5 42.5 21.25 SFUSSAB4.75 4.75 19 22 33.5 46 71 49.5 24.75 SFUSSAB6.5 6.5 22.5 25 37.5 54 84.5 57 28.5 SFUSSAB8.5 8.5 25.5 28.5 42.5 59 93 66.5 33.25 SFUSSAB9.5 9.5 29.5 32 43.5 66.5 106 71 35.5 SFUSSAB12 12 33 35.5 52 75.5 115.5 80.5 40.25 SFUSSAB13.5 13.5 36 38.5 62 82.5 135 91.5 45.75 SFUSSAB17 17 39 42 64 92 149.5 97 48.5 SFUSSAB25 25 46.5 49.5 80 96.5 180 127 63.5 SFUSSAB35 35 51.4 55.1 87.6 128 195 140 71.58 SFUSSAB55 55 66.8 70.1 120.8 145 170 180 93.3

Amazon

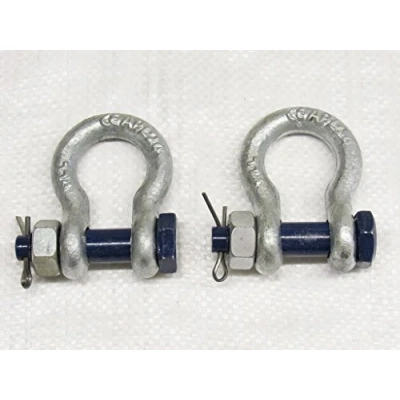

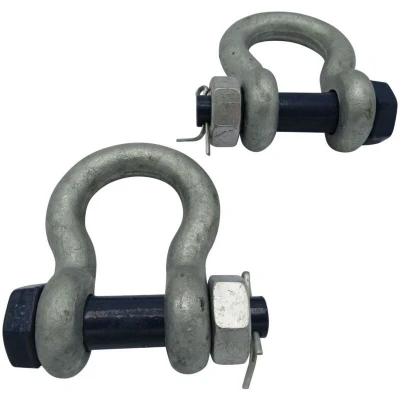

Designed to US Federal Specification RR-C-27IDIV. Drop forged and galvanised for strength and durability. Fitted with a safety pin for extra peace of mind and security when lifting. Safe Working Load of 1 Ton with a Safety Factor of 5:1 A=9.9MM, B=11MM, C=17MM, D=25.5MM, E=35MM, F=25.5MM, G=12.75MM, Manufacturer: SecureFix Direct
