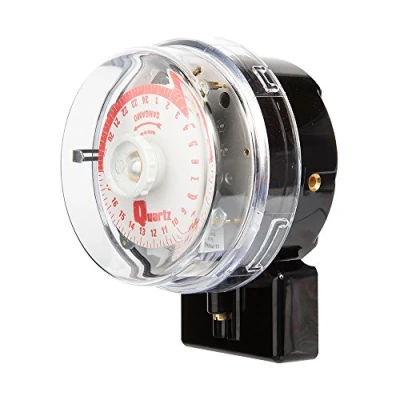

Sangamo Standard 3 Pin Time Switch, 2 on/offs
Description
Electrical World
Standard 3 Pin Time Switch, 2 on/offsTemporary override (manual button) Programming: 24 hour with on/off operations Current Rating: 20A Battery Reserve: 100 hours Day omit dialTechnical Specification:Power Supply: 230V AC, 50/60HzProgramming: 24 hour programme with ON/OFF operationsDisplay: 24 Hour dialMounting : SurfaceCurrent Rating: 20A resistive. More Switching Capacity info on requestReserve: 100 hrs (providing battery has been charged for 300 hrs)Day Omission: Selectable Temp Override Facility: Selectable Cable Size: 6.0mm2Timing Accuracy: 5 mins/yearTemperature Range: 0°C to 50°C Live Parts Protection: Enclosure ProtectionDirt and Moisture Protection: IP20Shock Protection: Class 1 (Product must be earthed)Dial Calibration: 15 min divisionsSetting Accuracy: +/- 3 minutesPeriod Between unlike Operations: 15 minutes minimumPeriod Between like Operations: 105 minutes minimumDay Omit Skips On Operation: Q554, Q555, Q559, Q563, Q586Day Omit Skips Off Operation: Q557Dimensions: Height (wall mounted) 136mm, width 105.7mm, projection 82mm, (Total height 146.5mm)Complies with: BS EN60730
Description
(3)
Standard 3 Pin Time Switch, 2 on/offsTemporary override (manual button) Programming: 24 hour with on/off operations Current Rating: 20A Battery Reserve: 100 hours Day omit dialTechnical Specification:Power Supply: 230V AC, 50/60HzProgramming: 24 hour programme with ON/OFF operationsDisplay: 24 Hour dialMounting : SurfaceCurrent Rating: 20A resistive. More Switching Capacity info on requestReserve: 100 hrs (providing battery has been charged for 300 hrs)Day Omission: Selectable Temp Override Facility: Selectable Cable Size: 6.0mm2Timing Accuracy: 5 mins/yearTemperature Range: 0°C to 50°C Live Parts Protection: Enclosure ProtectionDirt and Moisture Protection: IP20Shock Protection: Class 1 (Product must be earthed)Dial Calibration: 15 min divisionsSetting Accuracy: +/- 3 minutesPeriod Between unlike Operations: 15 minutes minimumPeriod Between like Operations: 105 minutes minimumDay Omit Skips On Operation: Q554, Q555, Q559, Q563, Q586Day Omit Skips Off Operation: Q557Dimensions: Height (wall mounted) 136mm, width 105.7mm, projection 82mm, (Total height 146.5mm)Complies with: BS EN60730
Amazon24 hour programmable 3 ON/OFF operations per day 24 hour display dial Surface mounted 3-pin – common switch and clock connections, Weight: 1.04058187664 pounds, Manufacturer: Sangamo
Expert ElectricalSangamo 2 Operations 3 Pin Time Switch
Product specifications
