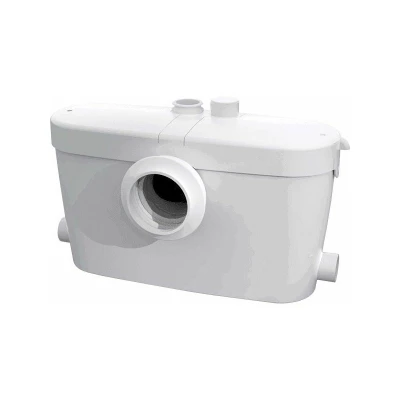

Saniflo Saniaccess 3 Macerator Pump 1902

Plumbworld

Key features:4 InletsCompatible with a WC, wash basin, shower and bidetSuitable for domestic applications.Easy service access through convenient covers - no need to remove the unit45dB noise levelSuitable for new installations2-year guaranteeA standard household usually has only one WC / bathroom that has just a single soil pipe to take the waste away and that is normally at the back of the house. Therefore, if you are looking to install a shower in a basement renovation, an ensuite bathroom, or a cloakroom toilet under the stairs, but don’t have direct access to the conventional drainage system, then macerator pumping systems offer the optimal solution.A macerator is an appliance which grinds up waste into smaller pieces and then turns it into a slurry. This makes it easier to pump into the sewage system. They give you the freedom to install a WC and basin in any situation where it is either impossible or impractical to install a conventional gravity-based waste discharge pipework.Macerators are used even as far as Antarctica. Research stations with an average summer population of more than 30 inhabitants must use them as a minimum treatment level before waste can be discarded into the sea.You may worry that they encourage bad smells in the bathroom or might be difficult to clean but as long as the unit is used and installed correctly you will not get any nasty surprises.The macerator is automatically activated by incoming water. The water is forced through the discharge pipe and then the non-return valves. These prevent the water from returning back into the unit.Normal WC cleaners are compatible with general cleaning purposes. Brands which create high amounts of foam should be avoided as they could cause temporary difficulties in the pumping operation.4 InletsA 4 inlet macerator connects to a toilet and 3 of the following products:WashbasinShowerBidetUnit Technical Data:Inlet size: 40mmOutlet size: 22/28/32mmSaniflo units are usually installed behind a WC with a horizontal outlet spigot which conforms to BS EN 33 or 37.Suitable for bathrooms with an IP44 rating.Average temperature: 35 Degrees CentigradeElectrical Supply: 220-240 /50Iso: EN 12050-3Wattage: 400wMotor RPM-2800 RPMDischarge pipe diameter: 22/28/32mmDischarge Lengths:Vertical Discharge: 5mHorizontal Discharge: 100mUnit Dimensions:Height: 333mmWidth: 494mmDepth: 169mmPack contains: Saniaccess 3 unit, non-return valve, connectors, activated carbon filter included to neutralise odoursAll Saniflo guarantees need to be registered directly with Saniflo. Please click here to do this.

ManoMano

GENERAL DESCRIPTION The Saniaccess 3 macerator pump is designed for easy installation in en-suite bathrooms, allowing for the connection of a WC, wash basin, shower, and bidet. It features convenient access covers for maintenance without removal of the unit and operates quietly. TECHNICAL SPECIFICATIONS Average temperature: 35 Degrees Centigrade Electrical Supply: 220-240V / 50Hz ISO: EN 12050-3 Wattage: 400W Motor RPM: 2800 RPM Discharge pipe diameter: 22/28/32mm Vertical discharge: 5m Horizontal discharge: 100m Height: 333mm Width: 494mm Depth: 169mm COMPATIBILITY AND ACCESSORIES Compatible with WC and wash basin. Suitable for bathrooms with an IP44 rating. Can connect to multiple appliances in an en-suite. USAGE The macerator is activated by incoming water, grinding waste into a slurry for easier pumping. Normal WC cleaners can be used, but avoid high-foam products.
