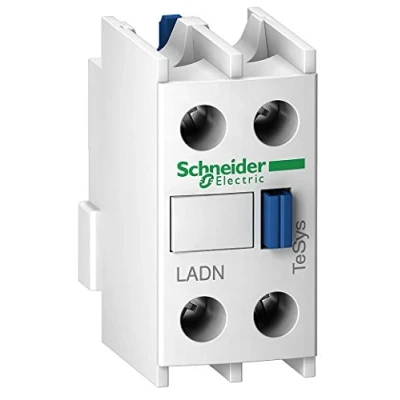

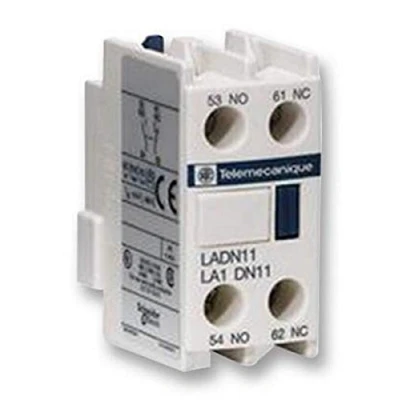

Schneider Electric, Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals, LADN11

The auxiliary front contact block for TeSys systems is an electrical component designed for industrial automation and control circuits. It features a front-mounting design that simplifies integration with other electrical and mechanical components and offers compatibility with a range of control systems. The block provides one normally open (NO) and one normally closed (NC) contact, and uses screw terminals for connections. It is built to support robust operation in industrial environments with a focus on flexible and safe control and command circuits.

Features

• 1 NO + 1 NC contacts
• Front mounting for easy integration
• Screw terminal connections
• IEC60947-5-1 compliant
• Insulation voltage up to 690 V

Technical specifications

• Current rating: 3 A at 230 V (AC-15)
• Poles: 1F+1O
• Front-mounting block for auxiliary contacts
• Dustproof auxiliaries and improved fire resistance mentioned in design context
• Suitable for industrial and HVAC applications
