Schneider Electric Merlin Gerin 50438 Vigirex closed torus for Differential protection pa 50mm
Featured
|
£ 47.85 |
To Shop
|
Description
ManoMano

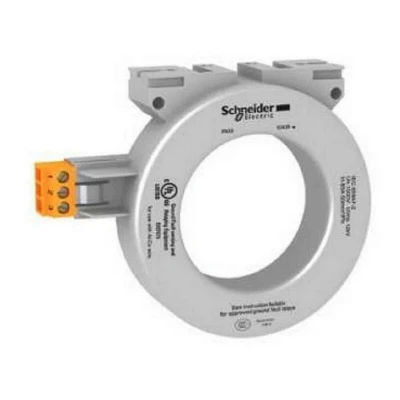

General description The Merlin Gerin 50438 - Vigirex closed torus is designed for differential protection, specifically as a leakage current sensor. This device is part of the Vigilohm / Vigirex product range and is known for its reliability and efficiency in monitoring electrical systems. Technical specifications Shortened device name: PA50 Current transformer type: Type A closed wound toroid Network type: AC/DC Mains frequency: 45...440 Hz Rated insulation voltage: 1000 V Transformation ratio: 1/1000 Rated short-term admissible current: 100 kA / 0.5 s Permissible residual short-circuit current: 85 kA / 0.5 s
