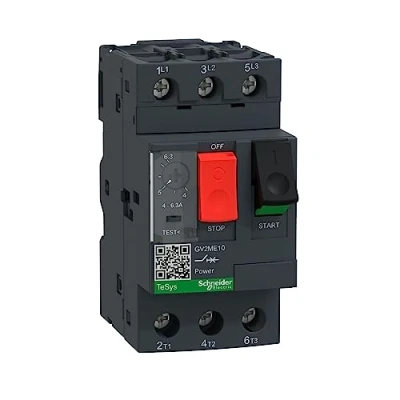

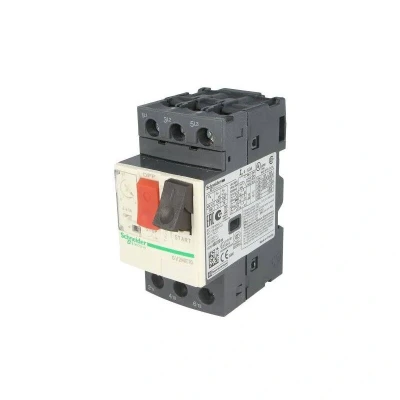

Schneider Electric, Motor circuit breaker, TeSys GV2, 3P, 4 6.3 A, thermal magnetic, screw clamp terminals, GV2ME10

General description The Schneider GV2ME10 is a TeSys circuit breaker designed for motor protection. It features a thermal-magnetic release and is suitable for use in AC networks. Technical specifications Short device name: GV2ME Product type: Circuit breaker Application: Motor protection Poles: 3P Network type: AC Employment category: AC-3 in accordance with IEC 60947-4-1 / A in accordance with IEC 60947-2 Mains frequency: 50/60 Hz Height: 89 mm Width: 45 mm Depth: 78.2 mm Product mass: 0.26 kg Other information Suitability for isolation: Yes in accordance with IEC 60947-1 Sensitivity to phase loss: Yes in accordance with IEC 60947-4-1
