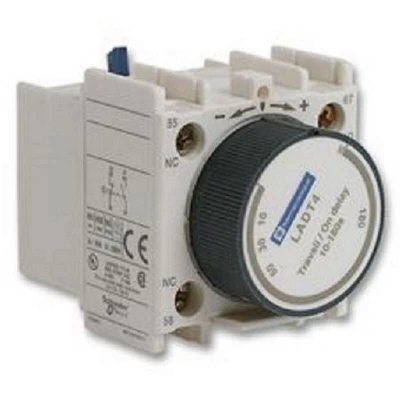

Schneider Electric Telemecanique TeSys LADT4 Auxiliary contact block 1C+1O clamp screw terminals
Featured
|
£ 85.10 |
To Shop
|
| COMPARE ALL WEBSHOPS (1) | ||
Description
ManoMano
General description Telemecanique TeSys LADT4 is an auxiliary contact block designed for reliable performance in various applications. It features a combination of one normally open (1O) and one normally closed (1C) contact, making it versatile for different control circuits. Technical specifications Rated insulation voltage: 690 V Rated operating voltage: 690 V AC, 25...400 Hz Composition of poles: 1F + 1O Conventional thermal current: 10 A Other information Mounting location: Front Conforming to IEC 60947-5-1 600 V CSA certifications 600 V UL certifications
Compare webshops (1)
Description
(1)
General description Telemecanique TeSys LADT4 is an auxiliary contact block designed for reliable performance in various applications. It features a combination of one normally open (1O) and one normally closed (1C) contact, making it versatile for different control circuits. Technical specifications Rated insulation voltage: 690 V Rated operating voltage: 690 V AC, 25...400 Hz Composition of poles: 1F + 1O Conventional thermal current: 10 A Other information Mounting location: Front Conforming to IEC 60947-5-1 600 V CSA certifications 600 V UL certifications
Product specifications
