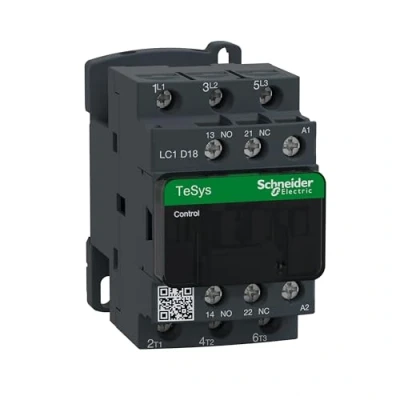

Schneider Electric TeSys D AC Contactor, 110 V AC, 50/60 Hz, 3 Pole, 3NO, 18A, Fixed and DIN Rail Mounting, LC1D18F7

ManoMano

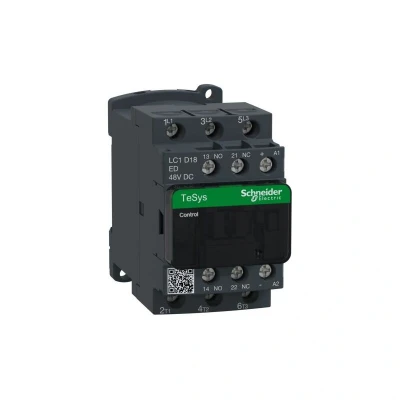

General description The Schneider LC1D18ED TeSys LC1D Contactor is designed for motor control and resistive load applications. This 3-pole contactor is part of the TeSys D range and is suitable for various voltage and current ratings. Technical specifications Product type: Contactor Device short name: LC1D Rated utilization voltage: ≤ 690 V AC, 25...400 Hz for power circuit; ≤ 300 V DC for power circuit Rated operating current: 18 A (≤ 60 °C) at ≤ 440 V AC (AC-3) for power circuit Rated operating current: 32 A (≤ 60 °C) at ≤ 440 V AC (AC-1) for power circuit Motor power: 10 kW at 500 V AC 50/60 Hz; 10 kW at 660...690 V AC 50/60 Hz; 4 kW at 220...230 V AC 50/60 Hz; 7.5 kW at 380...400 V AC 50/60 Hz; 9 kW at 415...440 V AC 50/60 Hz

Amazon

New modern look & feel of all machines Designed to meet the requirements of industrial and HVAC applications Digital customer experience for technical documents Maintenance guide via EcoStruxureTM Facility Expect Green Premium products and multiple international certificated
