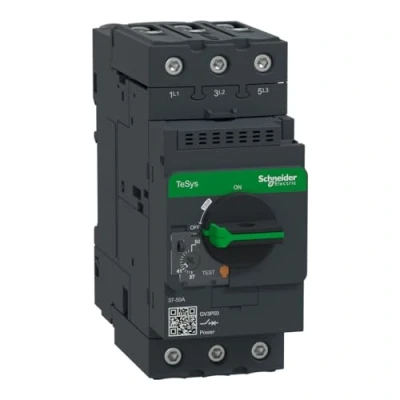

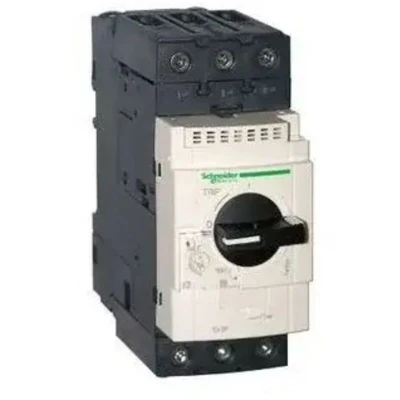

Schneider Electric TeSys GV3 Motor Circuit Breaker, 3 Pole, 37 50A, Thermal Magnetic, Rotary Handle, EverLink Terminals, GV3P50

General description The Schneider GV3P50 Motor Circuit Breaker is designed for motor protection, featuring a 3-pole configuration and a rated current of 50A. It is part of the TeSys range, ensuring reliable performance in various applications. Technical specifications Rated current: 50 A Number of poles: 3P Magnetic tripping current: 700 A Rated operating voltage: 690 V AC 50/60 Hz Power dissipated per pole: 8 W Height: 132 mm Width: 55 mm Depth: 136 mm Thermal protection adjustment zone: 37...50 A

motor circuit breaker that can be easily integrated within multiple configurations, thanks to its 55 mm standard width and mounting on din rail conforms to iec 60947-4-1, iec/en 60947-2 and ul 60947-4-1 (transition from ul 508) control by rotary knob, connection by everlink btr screw connectors setting range of thermal trips: 37-50 a magnetic tripping current id ± 20 %: 700 a ; Unit count: 1008.0; Included components: no_components; Special features: RoHS Compliance
