Schneider Electric XSAV11373, Proximity Switch

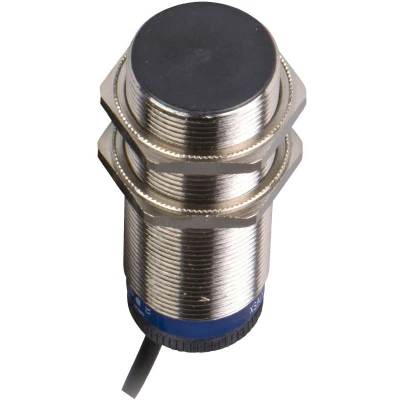

General description This Telemechanical XSAV11373 XS inductive detector is a cylindrical inductive proximity sensor designed for the non-contact detection of metal objects. With a threaded diameter of 30 mm and a length of 81 mm, this sensor is part of the XS range, which offers reliable inductive proximity sensors for various applications. It features a nickel-plated brass housing and is suitable for use in industrial environments, providing excellent resistance and durability. Technical specifications Detection distance: 10 mm Power supply: DC 12-48V Output type: PNP, normally closed (NC) Wiring: 3 wires Timer: 9 seconds Operating speed: 6 to 150 cycles per minute Cable length: 2 m IP rating: IP67 Usage This sensor is ideal for applications requiring the detection of fragile or freshly painted objects, as it operates without physical contact, thus preventing wear. It is particularly useful for implementing integrated rotation monitoring devices, as it combines pulse detection and
