Schneider LV432403 NSX400N 3P compact circuit breaker without trigger

Name: Schneider LV432403 NSX400N 3P compact circuit breaker without trigger
Brand: Schneider Electric
SKU: 22829cf64fb068422a0f7832ce2c234f
Price: 1128.74 GBP
Availability: InStock

1/1

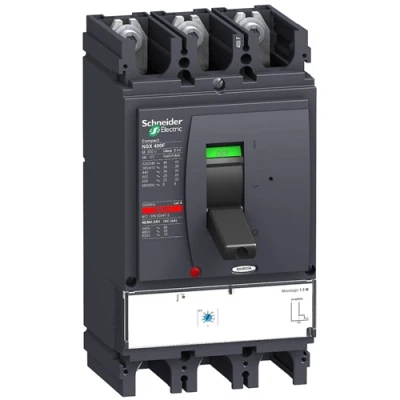

Image of Schneider LV432403 NSX400N 3P compact circuit breaker without trigger

ManoMano

Prices from

1,128.74

Featured

	£ 1,128.74	To Shop
COMPARE ALL WEBSHOPS (1)

Description

ManoMano General description The Schneider LV432403 NSX400N is a compact circuit breaker designed for AC networks with a frequency of 50/60 Hz. It is part of the NSX400...630 product range and is specifically engineered to provide reliable protection in electrical installations. Technical specifications Device short name: Compact NSX400N Circuit breaker name: Compact NSX400N Pole description: 3P In rated current operating voltage: 400 A (40 °C) [ui] rated insulation voltage: 800 V AC 50/60 Hz [uimp] rated impulse withstand voltage: 8 kV [ue] rated operating voltage: 690 V AC 50/60 Hz Coding of the breaking capacity: N Cutting capacity: 20 kA at 600 V AC 50/60 Hz Conformance: UL 508 and NEMA AB1 standards Icu ratings: 10 kA at 660/690 V AC, 22 kA at 525 V AC, 30 kA at 500 V AC, 42 kA at 440 V AC, 50 kA at 380/415 V AC, 85 kA at 220/240 V AC

Compare webshops (1)

Sort by:

£ 1,128.74

Description (1)

General description The Schneider LV432403 NSX400N is a compact circuit breaker designed for AC networks with a frequency of 50/60 Hz. It is part of the NSX400...630 product range and is specifically engineered to provide reliable protection in electrical installations. Technical specifications Device short name: Compact NSX400N Circuit breaker name: Compact NSX400N Pole description: 3P In rated current operating voltage: 400 A (40 °C) [ui] rated insulation voltage: 800 V AC 50/60 Hz [uimp] rated impulse withstand voltage: 8 kV [ue] rated operating voltage: 690 V AC 50/60 Hz Coding of the breaking capacity: N Cutting capacity: 20 kA at 600 V AC 50/60 Hz Conformance: UL 508 and NEMA AB1 standards Icu ratings: 10 kA at 660/690 V AC, 22 kA at 525 V AC, 30 kA at 500 V AC, 42 kA at 440 V AC, 50 kA at 380/415 V AC, 85 kA at 220/240 V AC
