Sealey 100L V Twin Direct Drive 3hp Compressor (SAC10030VE)

Electrical World

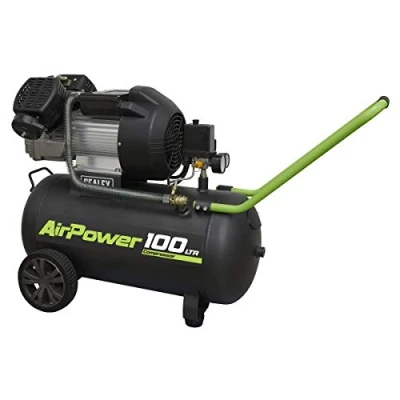

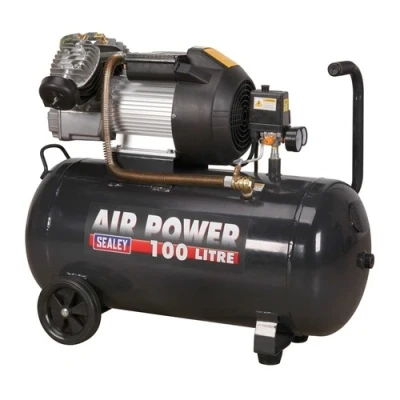

Sealey 100L V-Twin Direct Drive 3hp Compressor The SAC10030VE has a V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear. The pump is directly coupled to a heavy-duty induction motor for reliable and quiet operation. It also features a precision welded receiver tank which is manufactured to meet the Pressure Vessel Directive. Technical Specification: Model No: SAC10030VE Motor Output: 3hp Voltage/Phase: 230V - 1ph Minimum Rated Supply: 13A Air Displacement cfm(ltr/min): 12.6(357) Maximum Free Air Delivery cfm(ltr/min): 8.8(249) Maximum Pressure: 116psi(8bar) Receiver Capacity: 100ltr Outlet Fitting: Quick Release Coupling Dimensions (W x D x H): 890 x 450 x 760mm Weight: 52kg This Sealey compressor is suitable for general-purpose workshop applications and comes with a 1 Year Warranty.

ManoMano

General description The Sealey SAC10030VE Portable Compressor is a powerful and efficient 100-litre V-Twin direct drive compressor, designed for general purpose workshop applications. It features a twin pump with aluminum cylinders and cast iron liners, which reduces weight while enhancing wear resistance. The pump is directly coupled to a heavy-duty induction motor, ensuring reliable and quiet operation. Technical specifications Power: 3 hp Voltage: 240 V Receiver tank capacity: 100 litres Compressor type: V-Twin direct drive Other information Precision welded receiver tank manufactured to meet Pressure Vessel Directive 2009/105/EC Fitted with fully automatic pressure cut-out switch, air regulator, and pressure gauges for tank and supply Supplied with handle and wheels for easy mobility Fitted with ASTA/BS approved non-rewirable plug

Amazon

Features:V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear Suitable for general purpose workshop applications Pump directly coupled to heavy-duty induction motor for reliable and quiet operation Precision welded receiver tank manufactured to meet Pressure Vessel Directive Specifications:Model No: SAC10030VEMotor Output: 3hpSupply: 230VPhase: 1phMinimum Rated Supply: 13AAir Displacement cfm(ltr/min): 12, Weight: 127.86811196 pounds, Manufacturer: Sealey
