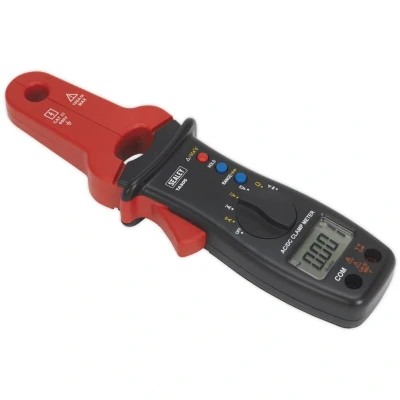

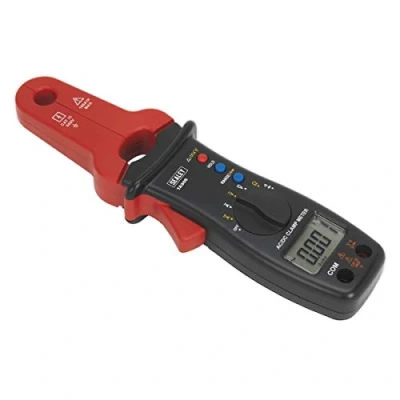

Sealey AC/DC Clamp Meter & Multimeter

Designed for the automotive electrician, the Sealey Clamp Meter & Multimeter (Model No. TA305) is a versatile and essential tool that conforms to the stringent EN 61010 CAT III 600V standard. This instrument is ideal for accurately measuring current draw from various vehicle components in situ, making it a reliable companion for professional mechanics and automotive technicians.

The meter features a 10mm clamp, which is designed to easily accommodate conductors up to 10mm in diameter. This allows for quick and efficient measurements without the need for disconnection or disruption of the circuit. The tool is supplied in a durable pouch, ensuring portability and protection when not in use.

Measurement Capabilities

The Sealey TA305 is a multifunctional device that includes the ability to measure:

- AC/DC Voltage

- AC/DC Current

- Resistance

- Audible Continuity

- Diode Test

This extensive range of measurement capabilities makes it suitable for a variety of automotive applications. Whether you need to check the voltage of a battery, measure the current draw of a component, or test the resistance of a circuit, this clamp meter delivers precise results.

Technical Specifications

The technical specifications of the TA305 are designed to meet the needs of automotive professionals. Key specifications include:

- Nett Weight: 185g

- Jaw Opening Capacity: 10mm

- Maximum Measurable Conductor: Ø10mm

- AC Voltage Accuracy:

- 400mV, 4V (±1.2%)

- 40V, 400V, 600V (±1.5%)

- DC Voltage Accuracy:

- 400mV (±0.8%)

- 4V, 40V, 400V, 600V (±1.0%)

- AC Current Accuracy: 40A, 100A (±2.5%)

- DC Current Accuracy: 40A, 100A (±2.5%)

- Input Impedance: 10MΩ

- Frequency Range: 40Hz-400Hz

- Resistance Accuracy:

- 400Ω (±1.2%)

- 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%)

With no tachometer or dwell functionalities, the focus of this meter remains sharp on providing essential electrical measurements that automotive professionals require.

In summary, the Sealey TA305 Clamp Meter & Multimeter stands out as a top choice for automotive electricians looking for a reliable, compact, and multifunctional tool that meets industry standards. Its ease of use, combined with its comprehensive measurement capabilities, make it an indispensable tool for both diagnostic and repair tasks in vehicle maintenance.
