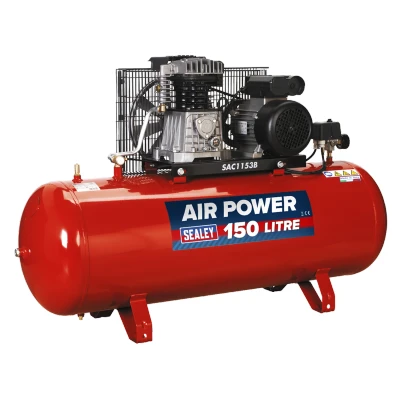

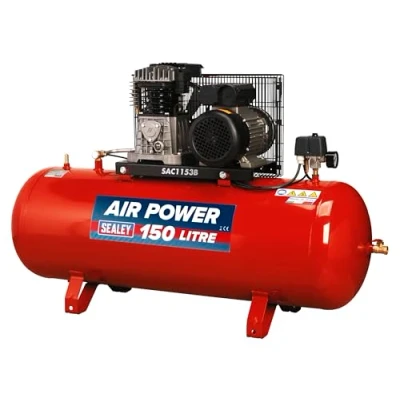

Sealey Air Compressor 150L Belt Drive 3hp with Cast Cylinders

The SAC1153B Air Compressor is a robust and reliable unit designed specifically for professional workshops. Its powerful 3hp motor ensures optimal performance, making it ideal for various pneumatic applications.

Performance Specifications

This air compressor has an impressive air displacement rate of 13.4 cubic feet per minute (cfm), translating to approximately 380 litres per minute (L/min). The maximum free air delivery stands at 8.8 cfm, or 249 L/min, which allows for efficient operation of air tools. The compressor can generate a maximum pressure of 145 psi (10 bar), providing sufficient force for demanding tasks.

Engineering Excellence

The SAC1153B features a heavy-duty construction with full cast iron cylinders capped with alloy heads. This design not only enhances durability but also promotes better heat dissipation, ensuring a longer lifespan for the compressor. The unit is equipped with twin capacitors and a centrifugal switch that support trouble-free startup on a standard 13A power supply. This innovation minimizes the risk of electrical issues and enhances reliability during operation.

Cooling Mechanism

To maintain optimal operating temperatures, heavy-duty drive guards are incorporated to shield the belt and flywheel. These components are specifically designed to force air over the pump, promoting effective cooling and thus improving the overall efficiency and life of the compressor.

Technical Details

- Air Displacement: 13.4 cfm (380 L/min)

- Maximum Free Air Delivery: 8.8 cfm (249 L/min)

- Maximum Pressure: 145 psi (10 bar)

- Motor Output: 3hp

- Minimum Rated Supply: 13A

- Receiver Capacity: 150 litres

- Speed: 1630 rpm

- Dimensions: 1320mm (W) x 400mm (D) x 820mm (H)

- Weight: 78 kg

Safety and Certification

The SAC1153B comes with full CE certification and includes test certificates along with an operating and maintenance manual. This ensures compliance with safety standards, giving users peace of mind in their professional settings.

Conclusion

The SAC1153B Air Compressor is a powerful and efficient solution for professional applications. With its heavy-duty construction, reliable motor, and excellent cooling features, this compressor is designed to meet the demanding needs of workshops. Whether gathering tools for automotive repair, woodwork, or spray painting, this air compressor is sure to deliver outstanding results time after time. Its robust build and superior engineering guarantee long-term performance, making it an essential addition to any professional environment.
