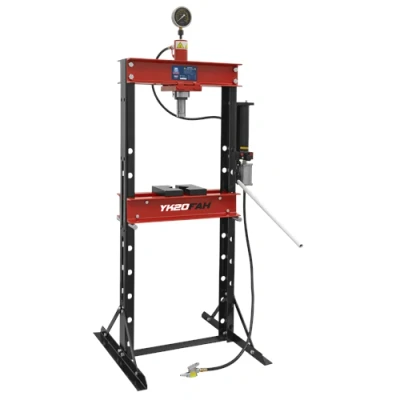

Sealey Air/Hydraulic Press 20 Tonne Floor Type

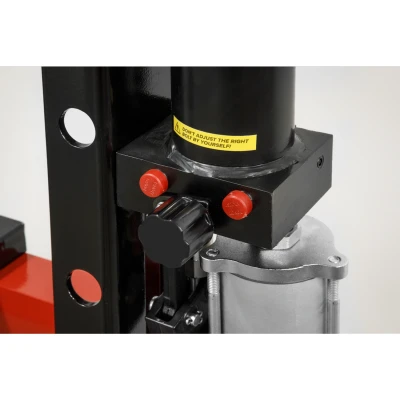

The YK20FAH is a robust hydraulic press designed for both professional and industrial applications. With its durable steel frame construction and an efficient side-mounted air motor powering the hydraulic pump unit, this machine is built to handle heavy-duty tasks with ease.

Key Features

- Sliding Hydraulic Ram Assembly: The YK20FAH features a sliding hydraulic ram assembly that offers an impressive 403mm of lateral travel. This unique design allows for off-centre pressing applications, making it versatile for a variety of pressing tasks.

- Ram Pressure Gauge: For enhanced operational efficiency, a ram pressure gauge is fitted to the unit, enabling users to monitor and adjust the pressure as needed for precise results.

- Flat Pressing Plate and V-Blocks: This hydraulic press comes supplied with flat pressing plates and V-blocks, providing versatility for different pressing configurations. These accessories are designed to accommodate various shapes and sizes of materials, ensuring optimal pressing without damage.

Technical Specifications

- Capacity: 20 Tonne

- Working Pressure: 108-120 psi

- Air Consumption: 7.06 cfm

- Ram Diameter: 48mm

- Ram Stroke: 185mm

- Maximum Ram Height to Table: 1018mm

- Minimum Ram Height to Table: 58mm

- Table Dimensions:

- Width: 630mm

- Depth: 206mm

- Aperture: 100mm

- Overall Dimensions:

- Height: 1796mm

- Width: 975mm

- Nett Weight: 93kg

Applications

The YK20FAH hydraulic press is ideal for a wide range of applications, including metal forming, automotive repairs, and workshop tasks. Its heavy-duty construction and powerful hydraulic system make it suitable for pressing, bending, and shaping materials with confidence.

Operation and Mounting

This hydraulic press can be mounted on a sturdy floor, ensuring stability during operation. The air motor provides a consistent and powerful performance, allowing for high productivity levels during pressing tasks. Users should ensure to provide additional assistance for safe delivery and installation due to the weight of the unit.

With a one-year warranty, the YK20FAH hydraulic press promises reliability and durability, making it a valuable addition to any workshop or industrial setting. Whether for professional or DIY use, this machine is engineered to deliver consistent results in a variety of pressing applications.
