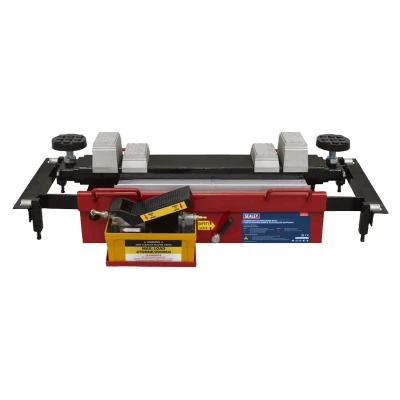

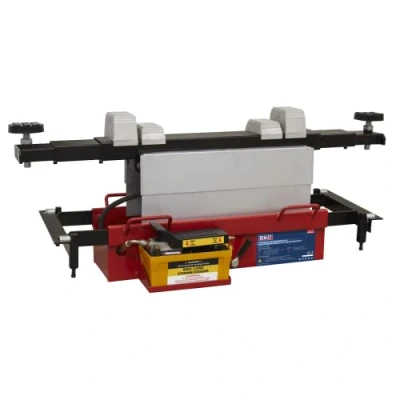

Sealey Air Jacking Beam 2 Tonne with Arm Extenders & Flat Roller Supports

The jacking beam is a high-quality lifting solution designed for professional automotive use, utilising compressed air to effortlessly lift loads within the specified range. This unit is fully certified and meets all requirements set by the Ministry of Transport (MOT), ensuring that it adheres to necessary safety and operational standards.

Safety Features

Safety is a top priority with this jacking beam. It incorporates a 2-stage mechanical safety lock, which secures the beam in place during operation, significantly reducing the risk of accidental load drop. Additionally, telescopic finger guards are designed to protect users from unintended injuries while maintaining a smooth and controlled lifting process.

Design and Functionality

The jacking beam is equipped with spring-loaded flat arms featuring roller bearings. This innovative design allows the beam to smoothly glide along the pit or ramp when unloaded, thereby facilitating ease of movement. When a load is applied, these arms firmly stabilise the unit, ensuring safety and stability during lifting. The wide lift configuration adheres to MOT recommendations for use on jacking points, making it suitable for a variety of vehicles and applications.

For enhanced versatility, the beam comes with optional hook arms, which can be employed for different lifting requirements. Additionally, the jacking beam is supplied with two pairs of aluminium support blocks, which provide critical support during use, contributing to the overall robustness of the lifting solution.

Technical Specifications

- Air Pressure: 90-145 psi

- Beam Lift Range: 95-300 mm

- Load Capacity: 2 Tonnes

- Load Arm Reach: 850-1600 mm

- Nett Weight: 100 kg

- Support Arm Reach: 780-1075 mm

- Dimensions: Length - 535 mm x Height - 340 mm

- Total Weight: 113 kg

- Warranty: 1 year

Accessories

A 2-piece wood planer set is also available for carpentry tasks, consisting of a 235 mm smooth plane and a 163 mm block plane. The smooth plane features a blade length of 80 mm and a width of 45 mm, while the block plane boasts a blade length of 90 mm and a width of 40 mm. Both planes are equipped with hardened, adjustable 65Mn steel blades and comfortable plastic handles, making them suitable for both professional woodworkers and DIY enthusiasts.

Overall, the jacking beam is a reliable and efficient lifting tool tailored for automotive servicing, while the wood planer set offers an excellent option for those engaged in woodworking, combining durability and comfort in use.
