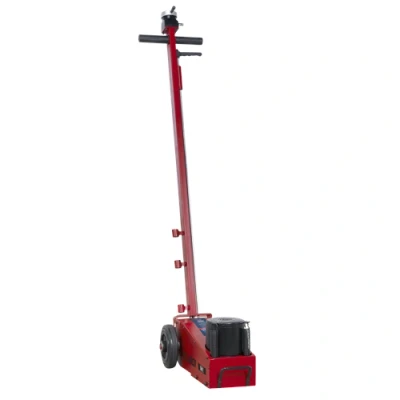

Sealey Air Operated Jack 20 Tonne Single Stage

The air-operated hydraulic jack is an essential tool for both workshop and roadside applications, designed to simplify the task of lifting heavy plant machinery, tractors, and commercial vehicles. This powerful and reliable jack is engineered to deliver impressive lifting capabilities while ensuring user safety and ease of operation.

<a class='cat-link' href='https://bigshopper.co.uk/brand/performance/'>Performance</a> and Specifications

With a capacity of 20 tonnes, this jack can handle some of the heaviest loads with minimal effort. It operates within a working pressure range of 116 to 174 psi and requires an air compressor with a horsepower rating of over 3hp. Users will appreciate the air consumption of 10.5 cubic feet per minute (cfm), ensuring efficient operation without excessive air demands.

# Dimensions

- Minimum Height: 215mm

- Maximum Height (including extensions): 456mm

- Piston Stroke: 141mm

- Chassis Length: 525mm

- Weight: 34.3kg

- Overall Width: 265mm

- Length (without wheels): 133mm

The jack is also designed for maximum stability and ease of use, featuring a minimum saddle height of 215mm, making it versatile enough to fit various lifting scenarios.

Safety Features

The jack is equipped with a dead man's handle, which is a crucial safety feature that aids in controlled lowering speed. This allows users to lower heavy loads gradually and safely, reducing the risk of sudden drops that could lead to accidents or injuries.

Extensions for Versatility

To enhance its functionality, the jack comes supplied with three extensions measuring 20mm, 50mm, and 100mm. These extensions close the gap between the jack's saddle and the jacking points on vehicles or machinery, ensuring a secure fit and better lifting support.

Conclusion

Whether you're working in a garage, on a construction site, or in a field, this air-operated hydraulic jack provides an efficient and safe solution for lifting heavy equipment. Its robust construction, coupled with user-oriented features, makes it a valuable addition to any toolkit. Enjoy peace of mind and enhanced productivity as you tackle heavy lifting tasks with confidence, knowing you have the right equipment to get the job done safely and efficiently.
