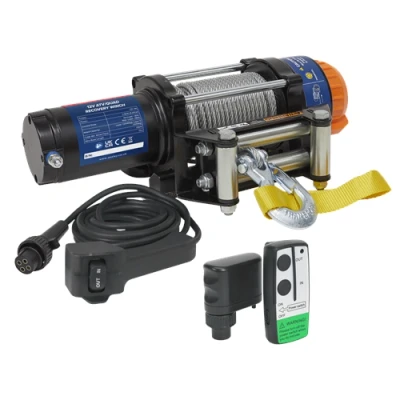

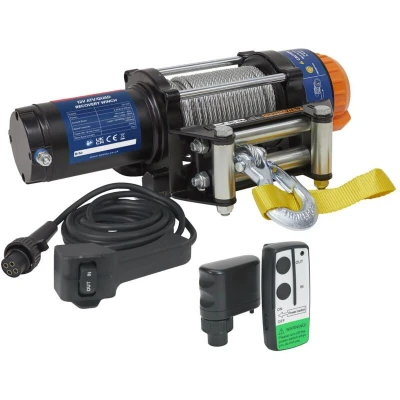

Sealey ATV2040 Wireless Winch Combo Kit

ManoMano

General description Sealey Wireless Winch ATV2040 Combo Kit is designed for ATV and quad bike mounting, providing a high-speed winch that combines performance with durability. Built to handle tough jobs, this winch features a high power 12V DC motor with a permanent magnet for exceptional pulling power. Technical specifications Model No.: ATV2040KIT Line Pull: 2040kg (4500lb) Motor: 12V DC IP Rating: IP67 Gear System: 3-Stage planetary gears Brake: Patented automatic spring brake Clutch: Sliding ring gear clutch Wire Rope: High quality wire rope with 4-way roller fairlead Compatibility and accessories Includes: ATV2040 - 12V ATV/Quad Recovery Winch Includes: UWRC01 - 4-Pin Universal Winch Remote Control Universal remote control compatible with all makes of winch Usage Allows the operator to stand clear or sit in the cab during operation (provided no restrictions) Other information 3 Year Guarantee*

Electrical World

• FAST - Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance and durability.• UNIVERSAL - Wireless remote control has a 4-pin plug-and-play receiver that works with all makes of winch.• SAFE - Allows the operator to stand well clear or sit in the cab (provided no restrictions).• STRONG - High quality wire rope feeds through 4-way roller fairlead.• 3 Year Guarantee*.Technical SpecificationConsumable Parts: ATV2040.WR - Wire Rope (ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (ø5.5mm x 17m) for ATV2040Current Draw: No-Load - 30A, Maximum Load - 185AGear Ratio: 180:1Line Pull*: 2040kg(4500lb)Line Speed*: No Load - 4.5m/min, Maximum Load - 1.3m/minMotor Power: 2.5kW(3.25hp)Nett Weight: 14.05kgNote: *Performance quoted at first layer of cable on drumSupply: 12VTechnical Specification:Motor Power: 2.5kW Supply: 12VWeight: 0.001KgWarranty: 3 years
