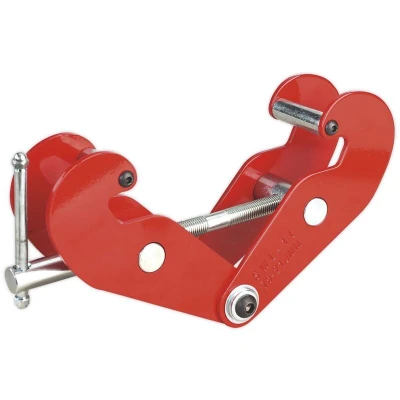

Sealey Beam Clamp 1 Tonne

The clamp is specifically designed for semi-permanent attachment to steel beams, providing a reliable lifting point for chain blocks, hoists, and other lifting tackle. Its robust construction makes it an excellent choice for various industrial applications, ensuring that you have the necessary support when handling heavy loads.

The versatility of this clamp allows it to be utilized not only for lifting but also for the transfer of steel beams. This makes it an essential tool in environments where steel structures are frequently moved or positioned. Additionally, it serves as a pulling clamp, which adds to its functionality in different lifting and pulling scenarios.

One of the standout features of this clamp is its low profile, which is enhanced by an integral pivot/lifting point. This streamlined design allows for easier attachment and detachment, ensuring that the clamp does not interfere with other equipment or obstruct the workspace. The low-profile design is particularly advantageous when headroom is limited, making it an ideal choice for use in tight spaces.

Technical Specifications

- Model No.: BC1000

- Adjustable Beam Width: 75-220mm

- Capacity: 1000kg

- Dimensions:

- Length (A): 260mm

- Adjustable Height (B): 180-360mm

- Depth (C): 64mm

- Thickness (D): 5mm

- Total Height (E): 215mm

- Hook Width (F): 102-155mm

- Diameter (G): 25mm

- Hole Diameter (H): Ø22mm

- Net Weight: 4.2kg

The construction of the clamp is of high-quality materials, ensuring durability and longevity even under demanding conditions. With a net weight of 4.2kg, it is lightweight yet sturdy, making it easy to transport and handle without compromising on strength.

This clamp is suitable for various industrial environments, including construction sites, manufacturing facilities, and warehouses. Its design accommodates a wide range of beam widths, making it adaptable to the changing demands of your lifting needs.

In summary, this clamp is an essential tool for anyone working with steel beams and heavy lifting equipment. Its combination of versatility, robust design, and low-profile convenience makes it an outstanding choice for both lifting and transferring steel structures, ensuring safety and efficiency in operations.
