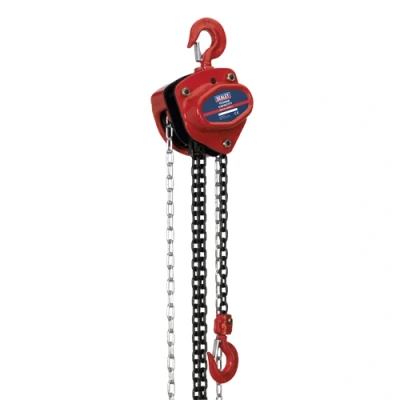

Sealey Chain Block 1 Tonne 2.5m

Electrical World

• Fitted with heat treated and ground, triple-spur geared shaft and pinion.• Also includes mechanical load brake for extra safety.• All chains are manufactured from hardened alloy material and load hooks feature safety latches.• Compact gear housing allows use where headroom is limited.Fitted with heat treated and ground, triple-spur geared shaft and pinion. Also includes mechanical load brake for extra safety. All chains are manufactured from hardened alloy material and load hooks feature safety latches. Compact gear housing allows use where headroom is limited.• Fitted with heat treated and ground, triple-spur geared shaft and pinion. • Also includes mechanical load brake for extra safety. • All chains are manufactured from hardened alloy material and load hooks feature safety latches. • Compact gear housing allows use where headroom is limited. • Model No. CB1000Technical Specification:Capacity: 1000kgHead Room: 317mmHook Aperture: 23mmLoad Chain Diameter: ø6mmMaximum Hook Capacity ø: 40mmNett Weight: 12kgPulling Effort: 31.5kgfSafe Working Load: 1000kgSize (W x D): 140 x 158mmStandard Lift: 2.5mTest Load: 1500kgDimensions: Length: 192mm x Height: 190mmWeight: 11.99KgWarranty: 1 year

ManoMano

General description Fitted with a heat-treated and ground, triple-spur geared shaft and pinion, the Sealey Chain Block 1 Tonne 2.5m is designed for efficient lifting. It includes a mechanical load brake for added safety, ensuring secure operation during use. The chains are manufactured from hardened alloy material, and the load hooks feature safety latches for enhanced security. Its compact gear housing allows for use in areas with limited headroom. Technical specifications Load capacity: 1 Tonne Lift height: 2.5 m MPN: CB1000 EAN: 5024209113991 Other information
