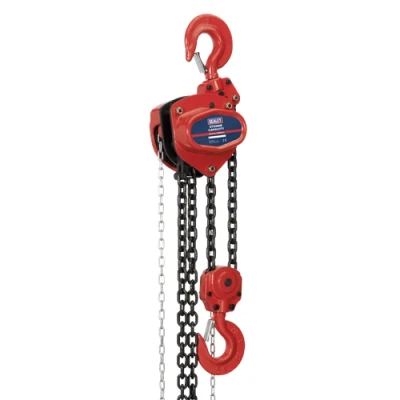

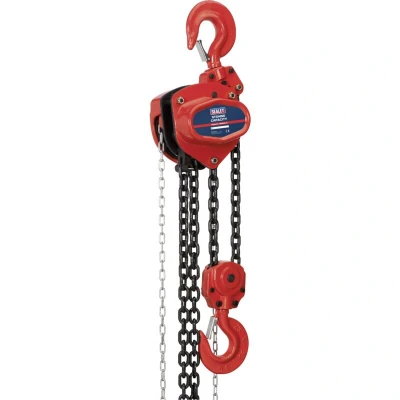

Sealey Chain Block 5 Tonne 3m

The CB5000 is a robust and reliable hoist designed for a variety of lifting applications. Engineered for safety and efficiency, this model features a heat-treated and ground, triple-spur geared shaft and pinion, which ensures smooth operation and maximum durability.

Safety Features

Safety is a top priority with the CB5000. It is equipped with a mechanical load brake that provides extra security during operation, mitigating the risk of unintended load drops. Additionally, all chains are constructed from hardened alloy material, contributing to the overall strength and longevity of the product. The load hooks are designed with safety latches, providing further assurance that the load remains securely attached during lifting.

Compact Design

The CB5000 boasts a compact gear housing, making it particularly suitable for use in areas with limited headroom. This design not only enhances its versatility but also allows for efficient operation in tight spaces where traditional hoists might be impractical.

Technical Specifications

- Model No: CB5000

- Safe Working Load: 5000 kg

- Test Load: 7500 kg

- Standard Lift Height: 3 meters

- Load Chain Diameter: 10 mm

- Pulling Effort: 42.22 kgf

- Hook Aperture: 50 mm

- Maximum Hook Capacity: 65 mm

- Dimensions: Length 420 mm, Height 285 mm

- Nett Weight: 43 kg (91.62 lbs)

- Gear Housing Size (W x D): 186 mm x 253 mm

- Warranty: 1 year

Applications

The CB5000 hoist is perfect for a variety of industrial and commercial applications, from construction sites to warehouses and beyond. Its high capacity and sturdy construction make it ideal for lifting heavy machinery, materials, and equipment with ease.

Conclusion

In summary, the CB5000 is a versatile and reliable hoist that combines safety features, compact design, and high lifting capacity. Whether you're working in a constrained environment or need a dependable lifting solution, the CB5000 is engineered to meet your demanding needs while ensuring user safety.
