Sealey Current Clamp 20A/80A AC/DC 12mm
Featured
|
£ 98.55 |
To Shop
|
|
£ 100.58 |
To Shop
|
|
£ 112.27 |
To Shop
|
Description

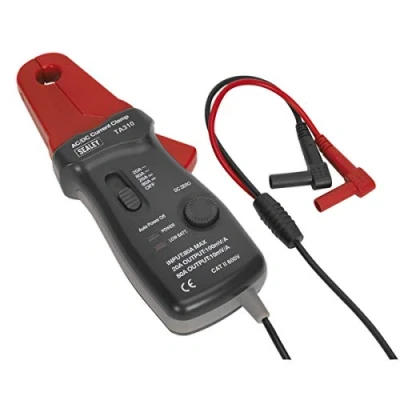

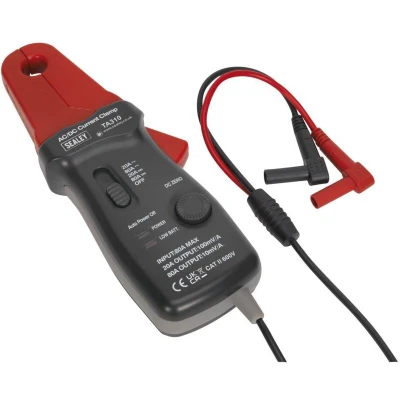

The TA310 is an innovative current clamp designed for seamless use with standard multimeters, making it an essential tool for automotive technicians and DIY enthusiasts alike. This device allows users to accurately measure the current draw from vehicle components in situ, ensuring convenience and efficiency without the need to break into the circuit.
Versatile Measurement Capabilities
The TA310 is suitable for measuring both AC and DC current, offering two specific settings for precise measurements: 20A and 80A. This flexibility is vital for diagnosing various vehicle electrical systems, whether you're checking the current draw of a starter motor or troubleshooting electrical faults. The clamp’s diameter of 12mm is ideal for testing individual wires, ensuring that you can easily access and measure current from different components.
User-Friendly Design
Fitted with 4mm banana connectors, the TA310 connects effortlessly to standard multimeters, making it accessible for anyone familiar with basic multimeter operations. The device is powered by a 9V battery, which is included with your purchase, and boasts a typical battery life of approximately 80 hours when using an alkaline battery. An LED indicator alerts you when the battery is running low, preventing unexpected downtime during critical measurements.
Additional Features
Not only does the TA310 function with multimeters, but it can also be utilized with an oscilloscope when paired with an appropriate BNC conversion adaptor. This functionality increases the versatility of the device, allowing for more in-depth analysis when needed.
Specifications
- Nett Weight: 0.31kg
- Maximum Captured Conductor Size: 8mm
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -15°C to 50°C
- Typical Battery Life: 80 hours (alkaline)
- Output Connection: Banana plugs (red and black)
The TA310 provides precise output values according to the measurement settings: a 100mV/A output for a 20A setting (with a range of 2V on the multimeter), and a 10mV/A output for an 80A setting (with a maximum of 200mV on the multimeter).
Dimensions and Weight
Measuring 190mm in height, 70mm in width, and 38mm in depth, the TA310 is compact and portable, weighing only 0.31kg. It also comes with a convenient storage pouch for easy transport and organization.
Designed to enhance your electrical diagnostics, the TA310 Current Clamp is a reliable and efficient tool tailored for both professional and personal use, ensuring that current measurements are always accurate and hassle-free.
Description
The TA310 is an innovative current clamp designed for seamless use with standard multimeters, making it an essential tool for automotive technicians and DIY enthusiasts alike. This device allows users to accurately measure the current draw from vehicle components in situ, ensuring convenience and efficiency without the need to break into the circuit.
Versatile Measurement Capabilities
The TA310 is suitable for measuring both AC and DC current, offering two specific settings for precise measurements: 20A and 80A. This flexibility is vital for diagnosing various vehicle electrical systems, whether you're checking the current draw of a starter motor or troubleshooting electrical faults. The clamp’s diameter of 12mm is ideal for testing individual wires, ensuring that you can easily access and measure current from different components.
User-Friendly Design
Fitted with 4mm banana connectors, the TA310 connects effortlessly to standard multimeters, making it accessible for anyone familiar with basic multimeter operations. The device is powered by a 9V battery, which is included with your purchase, and boasts a typical battery life of approximately 80 hours when using an alkaline battery. An LED indicator alerts you when the battery is running low, preventing unexpected downtime during critical measurements.
Additional Features
Not only does the TA310 function with multimeters, but it can also be utilized with an oscilloscope when paired with an appropriate BNC conversion adaptor. This functionality increases the versatility of the device, allowing for more in-depth analysis when needed.
Specifications
- Nett Weight: 0.31kg
- Maximum Captured Conductor Size: 8mm
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -15°C to 50°C
- Typical Battery Life: 80 hours (alkaline)
- Output Connection: Banana plugs (red and black)
The TA310 provides precise output values according to the measurement settings: a 100mV/A output for a 20A setting (with a range of 2V on the multimeter), and a 10mV/A output for an 80A setting (with a maximum of 200mV on the multimeter).
Dimensions and Weight
Measuring 190mm in height, 70mm in width, and 38mm in depth, the TA310 is compact and portable, weighing only 0.31kg. It also comes with a convenient storage pouch for easy transport and organization.
Designed to enhance your electrical diagnostics, the TA310 Current Clamp is a reliable and efficient tool tailored for both professional and personal use, ensuring that current measurements are always accurate and hassle-free.
