Sealey Diesel Engine Timing Tool Kit for PSA, Ford, Volvo 1.4D/1.5D/1.6D HDi/TDCi Belt Drive

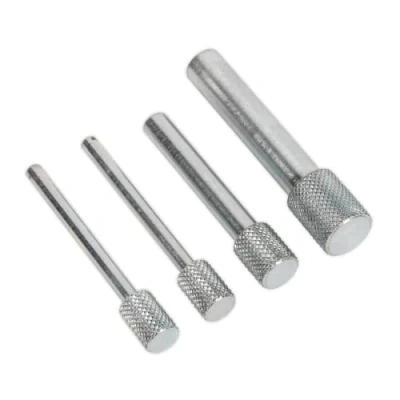

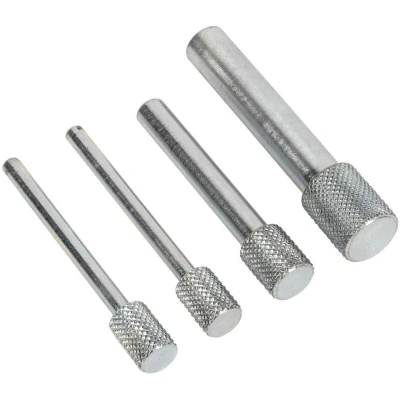

The locking pins set for timing belt replacement is an essential tool for mechanics and DIY enthusiasts working on Ford 1.5, PSA 1.4 (DV4), and 1.6 (DV6) diesel engines. These engines are commonly found in a variety of vehicles, including those from Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota, and Volvo. This specialized tool set simplifies the timing belt replacement process by securely locking the camshaft, crankshaft, flywheel, and high-pressure (HP) fuel pump into their correct timed positions.

Product Overview

This comprehensive set of locking pins is specifically designed to ensure accurate timing during belt replacement, thereby preventing costly engine damage due to misalignment. Each pin fits its corresponding component, providing a reliable means to maintain the engine's integrity while servicing.

Compatibility

The timing locking pins are suitable for a wide range of vehicles, including:

- Citroen: Models such as Berlingo (I/II/III/IV), C1, C2, C3 (I/II/III), DS3, C4 (I/II), C5 (II/III), and many others, covering various production years from 2002 to 2019.

- Ford: Compatible with B-Max, C-Max, EcoSport, Fiesta, Focus, Grand C-Max, and Tourneo Courier, among others, manufactured between 2002 and 2018.

- Mazda: Fits models like Mazda 2, 3, and 5 from 2002 to 2012.

- Peugeot: Works with a variety of models, including 107, 206, 207, 308, 5008, and Partner series, covering production years from 2001 to 2020.

- Suzuki: Applicable for Liana and SX4 models from 2004 to 2011.

- Toyota: Suitable for the Aygo (2005-2010).

- Volvo: Fits multiple models such as C30, S40, S60, V40, and V70 from 2004 to 2015.

Engine Compatibility

The locking pin set is tailored for various engine codes, including but not limited to:

- 1.4D: F6JA, F6JB

- 1.5D TDCi: ENUG, XUJA, XUJB

- 1.6D: DV6(9HX), DV6FC(BHW), DV6C(9HR)

This diversity in compatibility ensures that the tool set can effectively serve multiple engine types and configurations within the specified vehicle brands.

Specifications

The locking pins are constructed to high-quality standards, with a total weight of 0.15kg and dimensions of 148mm in length and 17mm in height. Certain models within the set are accompanied by OEM references, enhancing their applicability and ease of identification.

Warranty

The locking pins set comes with a one-year warranty, reflecting the manufacturer’s commitment to quality and reliability.

Whether you're a professional mechanic or a car enthusiast, this set of locking pins is an indispensable addition to your toolkit, ensuring a precise and secure timing belt replacement.
