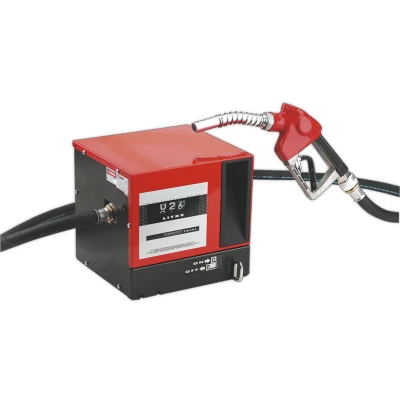

Sealey Diesel/Fluid Transfer System 56L/min Wall Mounting with Meter 230V

The Sealey Wall Mounting Diesel/Fluid Transfer System is a robust and efficient solution designed for the easy transfer of diesel and various fluids. This unit features a self-priming, rotary vane pump equipped with a bypass valve, ensuring an optimum flow without the risk of overheating. Its direct drive motor operates at 230V and is fitted with an overload protector, contributing to its durability and safety during operation.

Key Features

- Pump Type: The pump utilizes a self-priming rotary vane design which facilitates easy operation and ensures a continuous fluid transfer process.

- Flow Rate: Capable of delivering a flow rate of 56 litres per minute, making it suitable for both small and large-scale fluid transfer applications.

- Motor Specifications: The unit includes a powerful 350W direct drive motor that operates at a speed of 2900 RPM. It is designed to maintain a pressure of 29 PSI (2 bar) while consuming a current of 3A.

- Metering System: A volumetric nutating disc meter is integrated, featuring a large 3-digit, resettable display for easy monitoring of fluid flow. This allows for precise measurement and tracking.

- Delivery Accessories: Supplied with Model No. TP109 Automatic Delivery Nozzle, along with 4 meters of reinforced 3/4" hose. This combination provides versatility and convenience for a variety of delivery tasks.

- Installation Options: The unit can be installed in several configurations – wall-mounted, tank-based, or on a pedestal. This adaptability makes it suitable for various environments, enhancing its usability.

- Protection Ratings: With an IP55 rating, the pump is protected against dust and water ingress, ensuring reliable performance even in challenging conditions.

Technical Specifications

- Model No.: TP955

- Current: 3A

- Nett Weight: 19.15kg

- Power: 350W

- Pressure: 29 PSI (2 bar)

- Protection Class: IP55

- Speed: 2900 RPM

- Voltage: 230V

- Dimensions: Length: 444mm, Height: 488mm

- Total Weight: 20.326kg

- Warranty: 1 year

Overall, the Sealey Wall Mounting Diesel/Fluid Transfer System is a reliable and efficient solution for fluid transfer, combining performance, functionality, and safety features in a user-friendly design. Whether it is for automotive, industrial, or agricultural use, this unit stands out with its high flow rate and robust construction, ensuring it is a worthwhile investment for anyone needing a reliable fluid transfer system.
