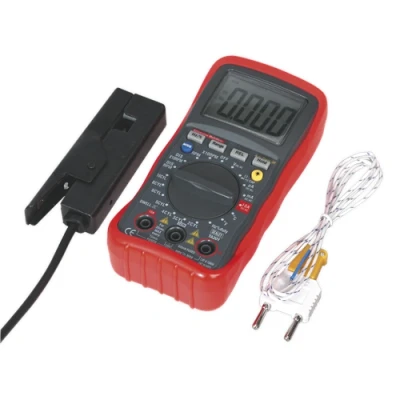

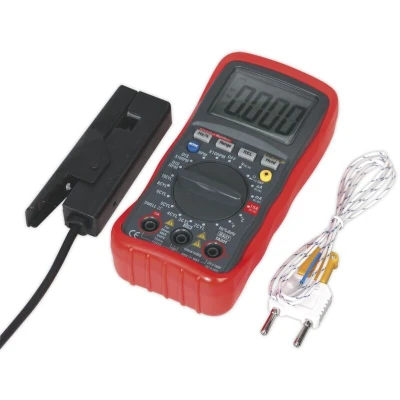

Sealey Digital Automotive Analyser 13 Function with Inductive Coupler

This compact size meter is designed for both professionals and enthusiasts alike, offering a variety of essential features for effective measurement and diagnostics. The device is equipped with a 4-digit, 22mm, high-contrast LCD display that includes a backlight for enhanced visibility in low-light conditions.

Key Features

- Auto-Ranging Capability: Simplifying the measurement process, the meter automatically selects the appropriate range for various measurements, ensuring accurate readings without the need for manual adjustments.

- Data Hold Function: This practical feature enables users to freeze the displayed reading, making it easier to note measurements down without having to take repeated readings.

- Auto-Power Off: To conserve battery life, the device automatically powers off after a period of inactivity. This ensures the longevity of the product and minimizes the need for frequent battery replacements.

- Inductive Coupler for RPM Measurement: The innovative design includes an inductive coupler (IC), providing fast and accurate readings of engine RPM. This is particularly beneficial for automotive professionals working on various engine types.

- Complete Hook-Up Kit: Supplied with a comprehensive set of accessories, including a probe, crocodile clip, and thermocouple leads, the meter allows for hassle-free and versatile connections, accommodating a range of testing scenarios.

Technical Specifications

- Model No: TA201

- Nett Weight: 330g

- Tachometer (RPM) Ranges:

- 4-Stroke: 600-4000 (x1) RPM, 600-12000 (x10) RPM

- 2-Stroke: 300-4000 (x1) RPM, 300-6000 (x10) RPM

- Dwell Measurement:

- 2 Cyl: 0-180°

- 3 Cyl: 0-120°

- 4 Cyl: 0-90°

- 5 Cyl: 0-72°

- 6 Cyl: 0-60°

- 8 Cyl: 0-45°

- 10 Cyl: 0-36°

- AC Voltage Range: 400mV, 4V, 40V, 400V, 600V (Auto-ranging, except 400mV)

- DC Voltage Range: 400mV, 4V, 40V, 400V, 600V (Auto-ranging)

- AC Current Range: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-ranging for µA & mA)

- DC Current Range: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-ranging for µA & mA)

- Capacitance Measurement: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-ranging)

- Frequency Measurement: Various ranges from 5Hz to 200kHz, depending on voltage settings

- Resistance Measurement: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-ranging)

- Continuity Checking: Included as part of the functionality.

This compact meter combines versatility and efficiency, making it an invaluable tool for anyone needing accurate measurements in various electrical and mechanical applications. Whether you're diagnosing engine issues or conducting routine maintenance, this meter is designed to meet your needs with precision and ease.
